SJS840300

Active

AMPHENOL PCD

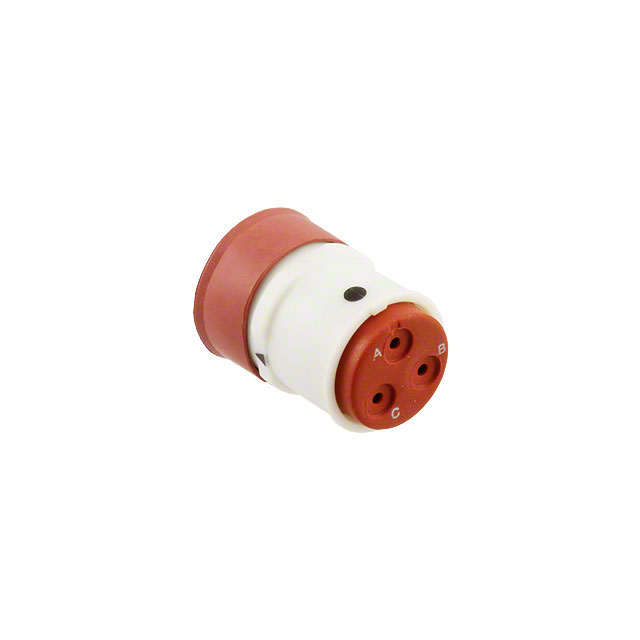

CONN RCPT HSNG MALE 3POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

SJS840300

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 3POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SJS840300

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Dust Cap
Housing Color	White
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8
Shielding	Unshielded
Type	For Male Pins

SJS84 Series

Part	Shell Material	Ingress Protection	Type	Note	Number of Positions	Contact Size	Contact Type	Housing Color	Features	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Material Flammability Rating	Connector Type	Mounting Type	Contact Shape	Shielding	Fastening Type	Termination	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Mounting Feature
AMPHENOL PCD SJS840410	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Female Sockets	Contacts Not Included	4	16	Crimp	White	Coupling Nut Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Plug Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840301	Polyamide (PA66) Nylon 6/6	Environment Sealed								8	125 °C	-65 ░C			Male Pins Receptacle	Free Hanging (In-Line)			Bayonet Lock	Crimp	13 A	Plastic	Gold
AMPHENOL PCD SJS840400	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included	4	16	Crimp	White	Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Receptacle Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840330	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	Black	Dust Cap	8	155 °C	-65 ░C	B	UL94 V-0	Receptacle Housing		Circular	Unshielded	Bayonet Lock					Flange
AMPHENOL PCD SJS840300	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	White	Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Receptacle Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840350	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	Black	Dust Cap	8	155 °C	-65 ░C	B	UL94 V-0	Receptacle Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840310	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Female Sockets	Contacts Not Included		16	Crimp	White	Coupling Nut Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Plug Housing	Free Hanging (In-Line)	Circular	Unshielded	Bayonet Lock
AMPHENOL PCD SJS840320	Polyamide (PA66) Nylon 6/6	IP67 - Dust Tight Waterproof	For Male Pins	Contacts Not Included		16	Crimp	White	Dust Cap	8	155 °C	-65 ░C	A	UL94 V-0	Receptacle Housing		Circular	Unshielded	Bayonet Lock					Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.40
		10	$ 21.37
		25	$ 20.45
		50	$ 19.79
		100	$ 19.13
		250	$ 18.07
		500	$ 17.54

Description

General part information

SJS84 Series

3 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Dust Cap

Documents

Technical documentation and resources

No documents available
