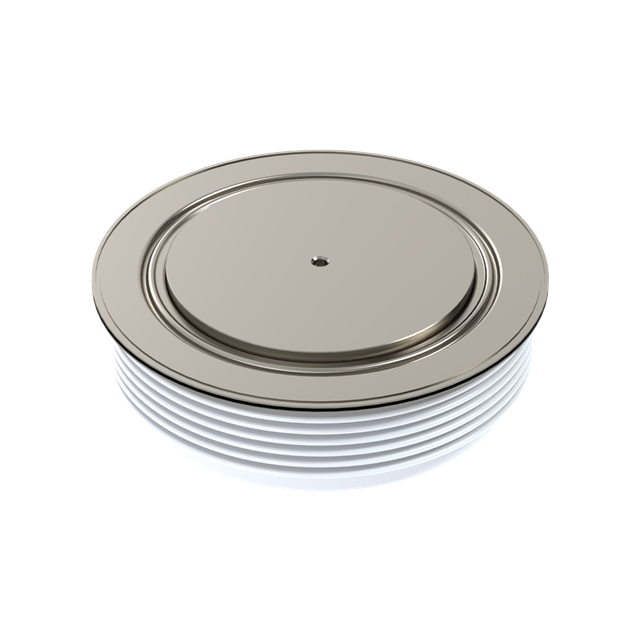

W6672TE350

Active

IXYS

DIODE STD 1900V 6672A TO200AF

Search across all available documentation for this part.

Active

IXYS

DIODE STD 1900V 6672A TO200AF

Technical Specifications

Parameters and characteristics for this part

Specification	W6672TE350

Current - Average Rectified (Io)	6672 A
Current - Reverse Leakage @ Vr	100 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	160 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-200AF
Reverse Recovery Time (trr)	52 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-200AF
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1900 V
Voltage - Forward (Vf) (Max) @ If	1.37 V

Part	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed	Package / Case
IXYS W6672TE320	6672 A	1750 V	1.37 V	52 µs	TO-200AF	Chassis Mount	100 mA	Standard	-40 °C	160 °C	Standard Recovery >500ns	200 mA	TO-200AF
IXYS W6672TE350	6672 A	1900 V	1.37 V	52 µs	TO-200AF	Chassis Mount	100 mA	Standard	-40 °C	160 °C	Standard Recovery >500ns	200 mA	TO-200AF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1900 V 6672A Chassis Mount TO-200AF
