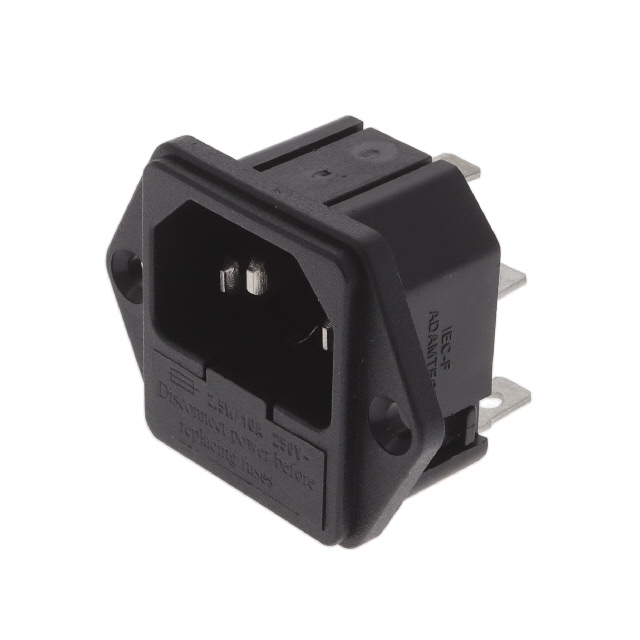

IEC-F-1
ActiveAdam Tech
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
IEC-F-1
ActiveAdam Tech
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IEC-F-1 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | ENEC, CCC, cURus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 15 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 27.5 mm |
| Panel Cutout Dimensions [y] | 31.5 mm |
| Termination | 0.187 " |
| Termination | 4.7 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 10 | $ 2.21 | |||
| 25 | $ 1.99 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.71 | |||
| 250 | $ 1.55 | |||
| 500 | $ 1.44 | |||
| 1000 | $ 1.34 | |||
| 2500 | $ 1.22 | |||
Description
General part information
IEC-F Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
