VN540-E

Obsolete

STMicroelectronics

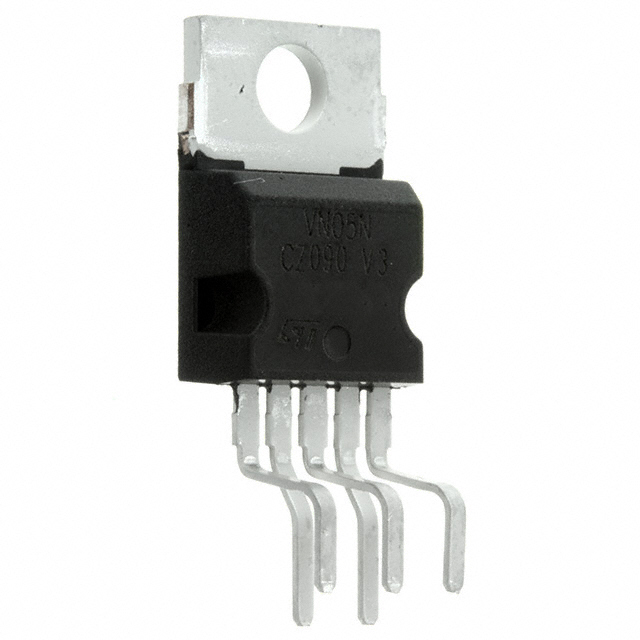

IC PWR DRIVER 1:1 5PENTAWATT

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC PWR DRIVER 1:1 5PENTAWATT

Technical Specifications

Parameters and characteristics for this part

Specification	VN540-E

Current - Output (Max)	2.8 A
Fault Protection	Over Temperature, Current Limiting (Fixed)
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	High Side
Package / Case	Pentawatt-5 (Vertical, Bent and Staggered Leads)
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	50 mOhm
Supplier Device Package	5-PENTAWATT
Switch Type	General Purpose
Voltage - Load [Max]	36 V
Voltage - Load [Min]	10 V
Voltage - Supply (Vcc/Vdd)	False

Part	Package / Case	Voltage - Supply (Vcc/Vdd)	Supplier Device Package	Features	Voltage - Load [Max]	Voltage - Load [Min]	Ratio - Input:Output [custom]	Rds On (Typ)	Interface	Number of Outputs	Fault Protection	Switch Type	Input Type	Current - Output (Max)	Output Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
STMicroelectronics VN540-E	Pentawatt-5 (Vertical Bent and Staggered Leads)		5-PENTAWATT	Status Flag	36 V	10 V	1:1	50 mOhm	On/Off	1	Current Limiting (Fixed) Over Temperature	General Purpose	Non-Inverting	2.8 A	High Side	Through Hole	85 °C	-25 °C
