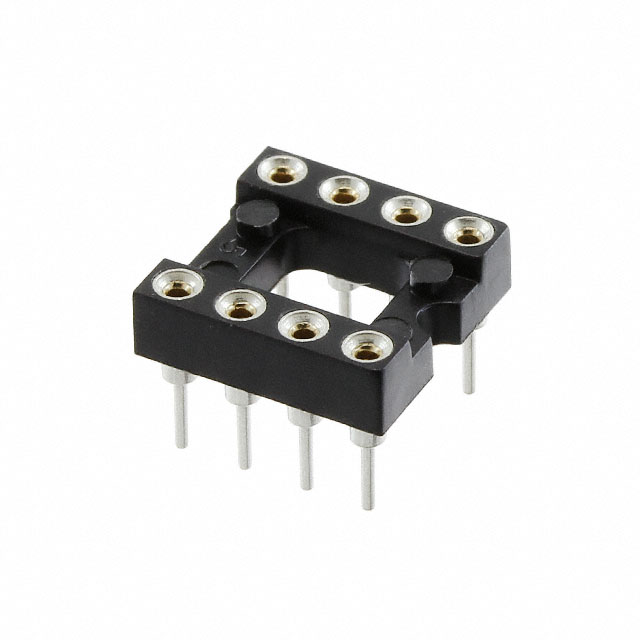

D2808-42
ActiveHarwin Inc.
IC SOCKET, DIP8, 8 CONTACT(S), SOLDER, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
D2808-42
ActiveHarwin Inc.
IC SOCKET, DIP8, 8 CONTACT(S), SOLDER, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D2808-42 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 196.9 µin |
| Contact Finish Thickness - Post | 5 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Housing Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.2 mm |
| Termination Post Length | 0.126 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.88 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.71 | |||
| 52 | $ 0.70 | |||
| 104 | $ 0.67 | |||
| 260 | $ 0.60 | |||
| 520 | $ 0.54 | |||
| 1040 | $ 0.53 | |||
Description
General part information
D2808 Series
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
