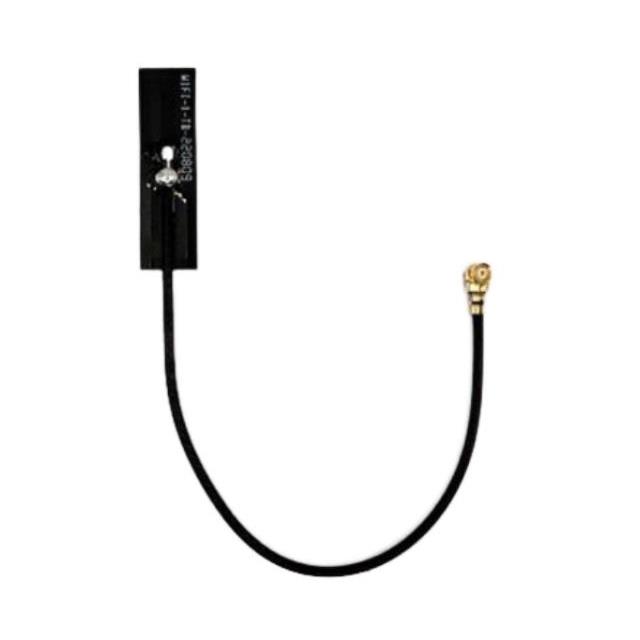

ST0225-10-401-A
ActiveAmphenol RF
RF ANTENNA, 5.15 TO 5.825GHZ, PCB / IOT / ISM / UNII / WIFI / WWAN / ZIGBEE, LINEAR, MHF1 CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
ST0225-10-401-A
ActiveAmphenol RF
RF ANTENNA, 5.15 TO 5.825GHZ, PCB / IOT / ISM / UNII / WIFI / WWAN / ZIGBEE, LINEAR, MHF1 CONNECTOR
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | ST0225-10-401-A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.45 GHz, 5.5 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.85 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.15 GHz, 2.4 GHz |
| Gain | 2.6 dBi |
| Height (Max) [Max] | 0.85 mm |
| Height (Max) [Max] | 0.033 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 1 W |
| Return Loss | -10 dB |
| RF Family/Standard | WiFi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ST0225-10 Series
2.45GHz, 5.5GHz Wi-Fi PCB Trace RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 2.6dBi Adhesive
