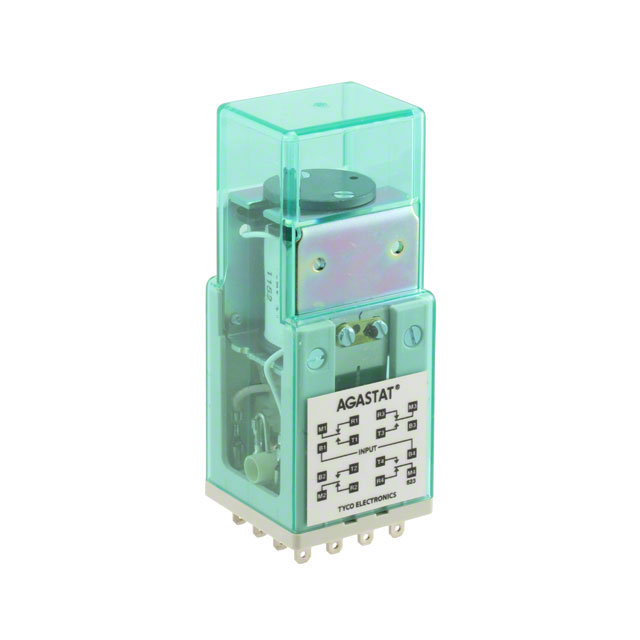

GPD
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GPD
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GPD |
|---|---|
| Approval Agency | CSA, UR |
| Coil Type | Non Latching |
| Coil Voltage | 125 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 10 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 100 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Relay Type | General Purpose |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 328.32 | |
| 10 | $ 306.43 | |||
| 25 | $ 295.48 | |||
Description
General part information
1423155 Series
General Purpose Relay SPDT (1 Form C) 125VDC Coil Socketable
