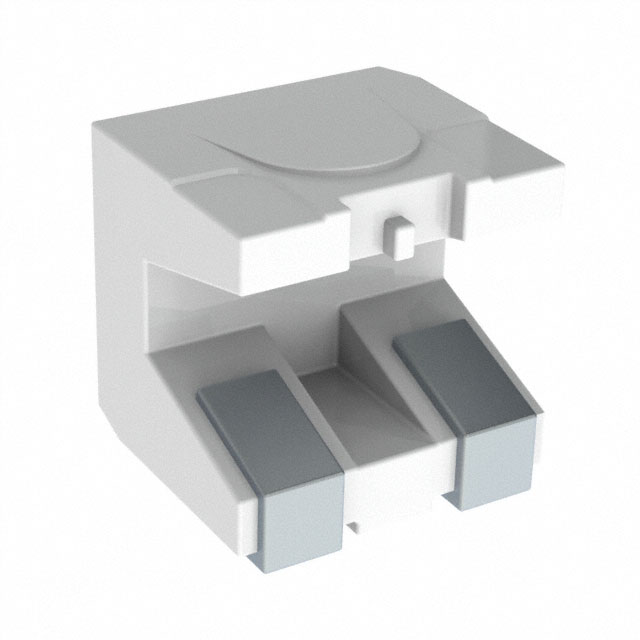

LA A67F-AABB-24-1-30-R33-Z
Activeams-OSRAM USA INC.
LED AMBER CLEAR SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LA A67F-AABB-24-1-30-R33-Z |
|---|---|
| Color | Amber |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 4.2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 1960 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, Boomerang |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 3.6 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 617 nm |
| Wavelength - Peak | 624 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LAA67F Series
Amber 617nm LED Indication - Discrete 2V 2-SMD, Boomerang
