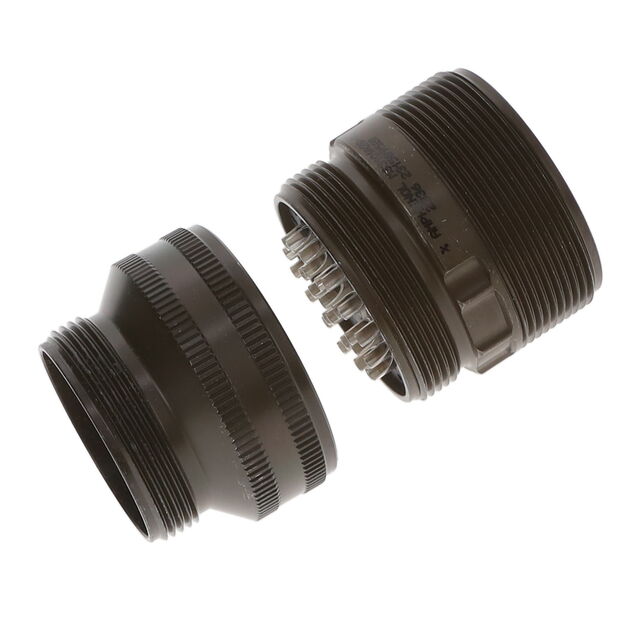

MS3101A28-12S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3101A28-12S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3101A28-12S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	28-12
Shielding	Unshielded

MS3101A28 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Grade	Orientation	Contact Material	Qualification	Applications	Mounting Type	Connector Type	Number of Positions	Current Rating (Amps)	Insert Material	Primary Material	Ingress Protection	Shielding	Shell Material	Shell Size - Insert
Amphenol Industrial Operations MS3101A28-20S
Amphenol Industrial Operations MS3101A28-51S-RES
Amphenol Industrial Operations MS3101A28-11S
Amphenol Industrial Operations MS3101A28-21S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	21	28	Olive Drab	Military	N	Copper Alloy	MIL-DTL-5015	Marine Military	Free Hanging (In-Line)	Receptacle Female Sockets	37	13 A	Neoprene	Metal	Environment Resistant	Unshielded	Aluminum Alloy
Amphenol Industrial Operations MS3101A28-12S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver			Olive Drab	Military	N	Copper Alloy	MIL-DTL-5015	Marine Military	Free Hanging (In-Line)	Receptacle Female Sockets	26	13 A	Neoprene	Metal	Environment Resistant	Unshielded	Aluminum Alloy	28-12
Amphenol Industrial Operations MS3101A28-51P-RES
Amphenol Industrial Operations MS3101A28-16S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	28	16	Olive Drab	Military	N	Copper Alloy	MIL-DTL-5015	Marine Military	Free Hanging (In-Line)	Receptacle Female Sockets	20	13 A	Neoprene	Metal	Environment Resistant	Unshielded	Aluminum Alloy
Amphenol Industrial Operations MS3101A28-9S
Amphenol Industrial Operations MS3101A28-21P	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Silver	21	28	Olive Drab	Military	N	Copper Alloy	MIL-DTL-5015	Marine Military	Free Hanging (In-Line)	Male Pins Receptacle	37	13 A	Neoprene	Metal	Environment Resistant	Unshielded	Aluminum Alloy
Amphenol Industrial Operations MS3101A28-1P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.12
		10	$ 64.35
		25	$ 61.87
		50	$ 59.81
		100	$ 56.51

Description

General part information

MS3101A28 Series

26 Position Circular Connector Receptacle, Female Sockets Solder Cup
