LHD-07-TRB-V0

Active

Adam Tech

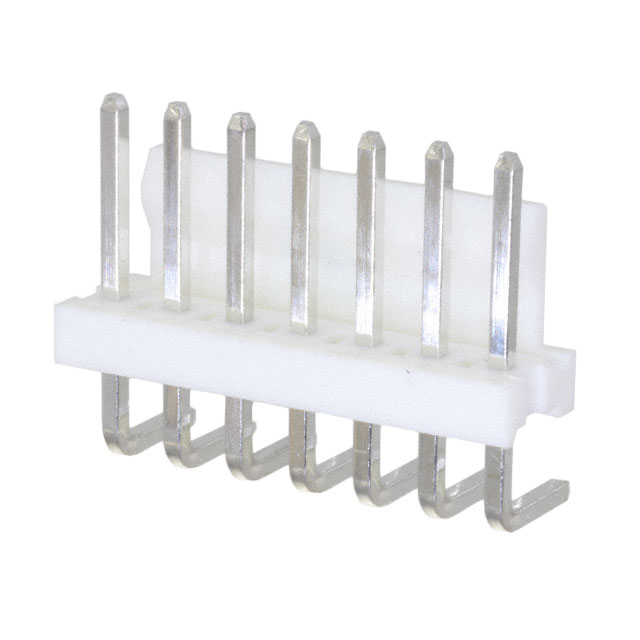

CONN HEADER R/A 7POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

LHD-07-TRB-V0

Active

Adam Tech

CONN HEADER R/A 7POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-07-TRB-V0

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	11.4 mm
Contact Length - Mating [custom]	0.449 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.125 in
Insulation Height	3.18 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

LHD-07 Series

Part	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Termination	Current Rating (Amps)	Shrouding	Overall Contact Length [x]	Overall Contact Length [x]	Contact Shape	Number of Rows	Contact Material	Contact Type	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Style	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Adam Tech LHD-07-TS	0.448 in	11.38 mm	All	White	Solder	7 A	Shrouded - 1 Wall	0.715 "	18.16 mm	Square	1	Brass	Male Pin	Through Hole	Tin	0.425 in	10.8 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	-40 °C	105 ░C	3.6 mm	0.142 in	7	0.156 in	3.96 mm	Friction Lock	Header	Board to Cable/Wire
Adam Tech LHD-07-TRB-V0			All	White	Solder	7 A	Shrouded - 1 Wall			Square	1	Brass	Male Pin	Through Hole Right Angle	Tin	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	-40 °C	85 °C	3.2 mm		7	0.156 in	3.96 mm	Friction Lock	Header	Board to Cable/Wire	11.4 mm	0.449 in	0.126 in
Adam Tech LHD-07-TRB			All	White	Solder	7 A	Shrouded - 1 Wall			Square	1	Brass	Male Pin	Through Hole Right Angle	Tin			Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-2	-40 °C	85 °C	3.2 mm		7	0.156 in	3.96 mm	Friction Lock	Header	Board to Cable/Wire	11.4 mm	0.449 in	0.126 in	0.3 in	7.62 mm
Adam Tech LHD-07-TRA-V0			All	White	Solder	7 A	Shrouded - 1 Wall			Square	1	Brass	Male Pin	Through Hole Right Angle	Tin	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 V-0	-40 °C	85 °C	3.2 mm		7	0.156 in	3.96 mm	Friction Lock	Header	Board to Cable/Wire	11.4 mm	0.449 in	0.126 in
