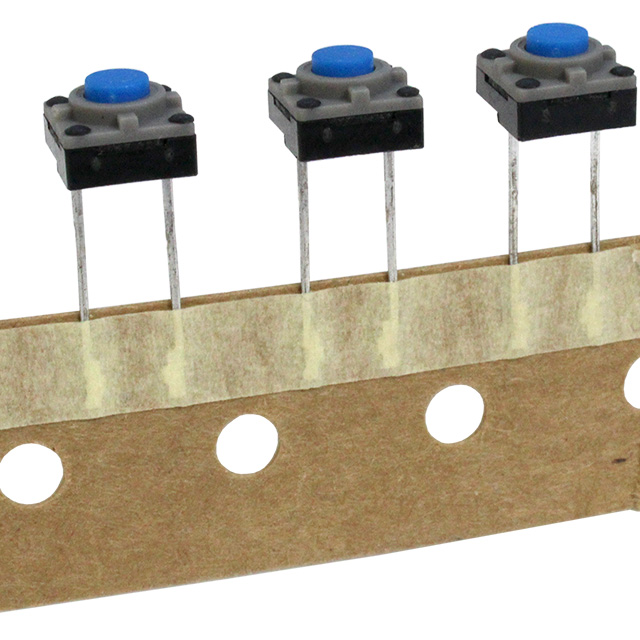

CR1104S5.0LF200

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	CR1104S5.0LF200

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 48 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	200 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7.2 mm
Outline [y]	7.2 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Switch Travel [custom]	Actuator Orientation	Mounting Type	Actuator Material	Operating Force	Switch Function	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Termination Style	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical
CIT Relay and Switch CR1104S7.0LF200	SPST-NO	Standard	85 °C	-40 °C	Non-Illuminated	0.3 mm	Top Actuated	Through Hole	Polybutylene Terephthalate (PBT)	200 gf	Off-Mom	0.05 A 48 VDC	7 mm	PC Pin	7.2 mm	7.2 mm
CIT Relay and Switch CR1104S5.0LF200	SPST-NO	Standard	85 °C	-40 °C	Non-Illuminated	0.3 mm	Top Actuated	Through Hole	Polybutylene Terephthalate (PBT)	200 gf	Off-Mom	0.05 A 48 VDC		PC Pin	7.2 mm	7.2 mm	5 mm
CIT Relay and Switch CR1104S7.0LF260	SPST-NO	Standard	85 °C	-40 °C	Non-Illuminated	0.3 mm	Top Actuated	Through Hole	Polybutylene Terephthalate (PBT)	260 gf	Off-Mom	0.05 A 48 VDC	7 mm	PC Pin	7.2 mm	7.2 mm
CIT Relay and Switch CR1104S4.3LF260	SPST-NO	Standard	85 °C	-40 °C	Non-Illuminated	0.3 mm	Top Actuated	Through Hole	Polybutylene Terephthalate (PBT)	260 gf	Off-Mom	0.05 A 48 VDC	4.3 mm	PC Pin	7.2 mm	7.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
