WR9HE3000LCP-F(R6B)

Active

GlobTek, Inc.

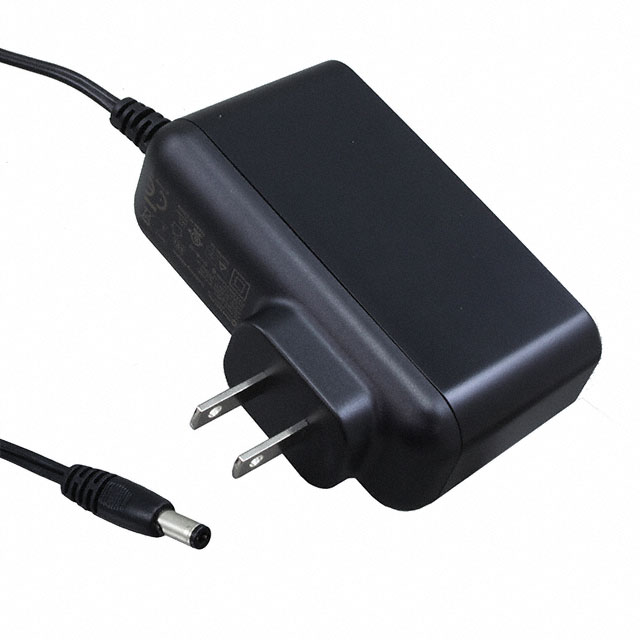

AC/DC WALL MOUNT ADAPTER 12V 36W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9HE3000LCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	LPS, PSE, CB, cULus, EAC, VCCI
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-5 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	North America
Size / Dimension [x]	3.66 in
Size / Dimension [x]	93 mm
Size / Dimension [y]	1.3 in
Size / Dimension [y]	33 mm
Size / Dimension [z]	3.1 in
Size / Dimension [z]	78.7 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Input Connector	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Approval Agency	Power (Watts)	Form	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Voltage - Output	Efficiency	Standard Number	No Load Power Consumption [Max]	Input Type	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. WR9HE3000LCP-F(R6B)	NEMA 1-15P	ITE (Commercial)	60.2 in	1.53 m	3 A	CB cULus EAC LPS PSE VCCI	36 W	Wall Mount (Class II)	1.3 in	33 mm	3.66 in	93 mm	3.1 in	78.7 mm	-5 °C	45 °C	North America	12 V	Level VI	60950-1	75 mW	Fixed Blade	Positive Center	90 VAC	264 VAC	Barrel Plug	2.5 mm 5.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
