PSL-FP-IFR26650PC

Active

Power Sonic

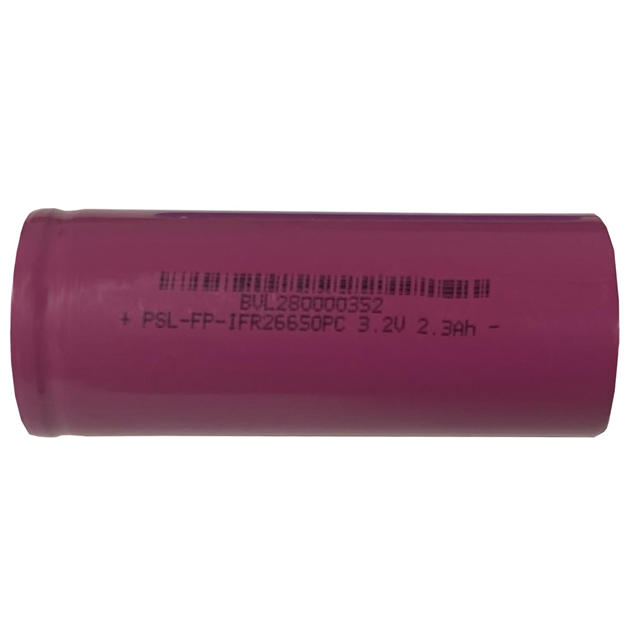

LIFEPO4 - LITHIUM IRON PHOSPHATE BATTERY LICYLCELL;PSL-FP-26650, 3.2V2.3AH, POWER CELL, 30C

Search across all available documentation for this part.

Active

Power Sonic

LIFEPO4 - LITHIUM IRON PHOSPHATE BATTERY LICYLCELL;PSL-FP-26650, 3.2V2.3AH, POWER CELL, 30C

Technical Specifications

Parameters and characteristics for this part

LiFePO4 - Lithium Iron Phosphate Battery LiCylCell;PSL-FP-26650, 3.2V2.3AH, Power Cell, 30C

Part	Discharge Rate	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Voltage - Rated	Standard Charge Current	Capacity	Termination Style	Battery Chemistry	Battery Cell Size
Power Sonic PSL-FP-IFR26650EC	10 A	65.5 mm	25.1 mm	0.99 in	2.58 "	3.2 V	3.4 A	3.4 Ah	Button Top (Extending)	Lithium Iron Phosphate
Power Sonic PSL-FP-IFR18650EC	4.5 A	2.56 in 65 mm	0.72 in 18.3 mm			3.2 V	1.5 A	1.5 Ah	Button Top (Extending)	Lithium Iron Phosphate	18650
Power Sonic PSL-FP-IFR26650PC	69 A	65.5 mm	25.1 mm	0.99 in	2.58 "	3.2 V	4.6 A	2.3 Ah	Button Top (Extending)	Lithium Iron Phosphate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	14700	$ 6.56
Sager	N/A	1	$ 10.62

General part information

LiFePO4 - Lithium Iron Phosphate Battery LiCylCell;PSL-FP-26650, 3.2V2.3AH, Power Cell, 30C
