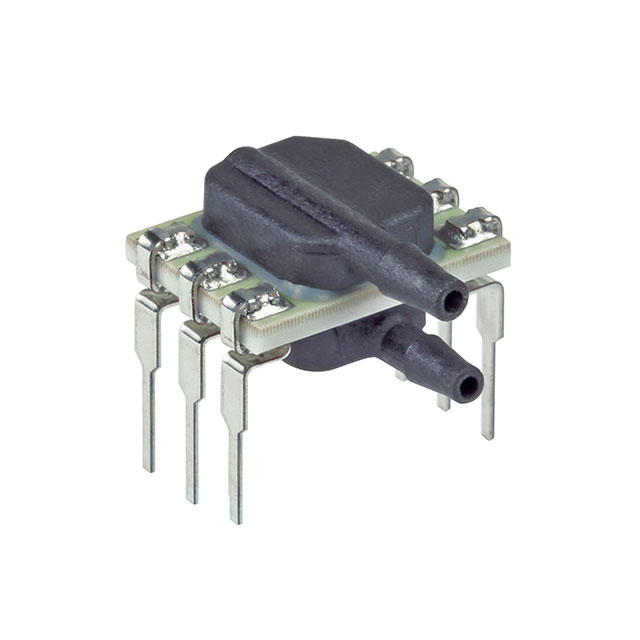

ABPDRRT005PG2A5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.06" 12BIT 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.06" 12BIT 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABPDRRT005PG2A5

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	90 PSI
Maximum Pressure [Max]	620.53 kPa
Mounting Type	Through Hole
Operating Pressure	34.47 kPa
Operating Pressure	5 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	12 b
Output Type	I2C
Package / Case	6-DIP Module
Port Size	Tube, Male, Dual
Port Size	0.06 "
Port Size	1.6 mm
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin

Part	Port Style	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Features	Mounting Type	Accuracy	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Termination Style	Port Size	Port Size	Port Size	Output Type	Supplier Device Package	Output
Honeywell Sensing and Productivity Solutions ABPDRRT005PG2A5	Barbed	34.47 kPa	5 PSI	85 °C	-40 °C	6-DIP Module	Amplified Output Temperature Compensated	Through Hole	0.25 %	Vented Gauge	90 PSI	620.53 kPa	Medical Ventilation	PC Pin	Dual Male Tube	0.06 "	1.6 mm	I2C	6-DIP	12 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.06" (1.6mm) Tube, Dual 12 b 6-DIP Module
