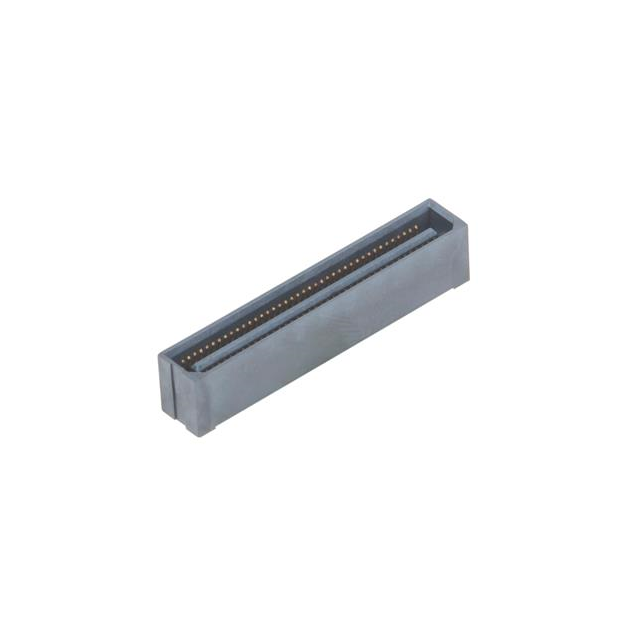

11826-CDA

Active

Amphenol ICC

LYNX, 6MM, 4X40 PLUG

Search across all available documentation for this part.

Active

Amphenol ICC

LYNX, 6MM, 4X40 PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Features	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Amphenol ICC 11826-BAA	Gold	Board Guide	40	0.6 mm	0.024 in	Outer Shroud Contacts Plug	5 mm	Surface Mount	4.7 mm	0.185 in
Amphenol ICC 11826-AFA	Gold	Board Guide Pick and Place	240	0.6 mm	0.024 in	Outer Shroud Contacts Plug	4 mm	Surface Mount	3.7 mm	0.146 in
Amphenol ICC 11826-CCA	Gold	Board Guide	120	0.6 mm	0.024 in	Outer Shroud Contacts Plug	6 mm	Surface Mount	5.7 mm	0.224 in
Amphenol ICC 11826-DAA	Gold	Board Guide	40	0.6 mm	0.024 in	Outer Shroud Contacts Plug	7 mm	Surface Mount	6.7 mm	0.264 "
Amphenol ICC 11826-CDA	Gold	Board Guide	160	0.6 mm	0.024 in	Outer Shroud Contacts Plug	6 mm	Surface Mount	5.7 mm	0.224 in
Amphenol ICC 11826-GDA	Gold	Board Guide	160	0.6 mm	0.024 in	Outer Shroud Contacts Plug	10 mm	Surface Mount			0.382 in	9.7 mm
Amphenol ICC 11826-GGA	Gold	Board Guide Pick and Place	280	0.6 mm	0.024 in	Outer Shroud Contacts Plug	10 mm	Surface Mount			0.382 in	9.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
