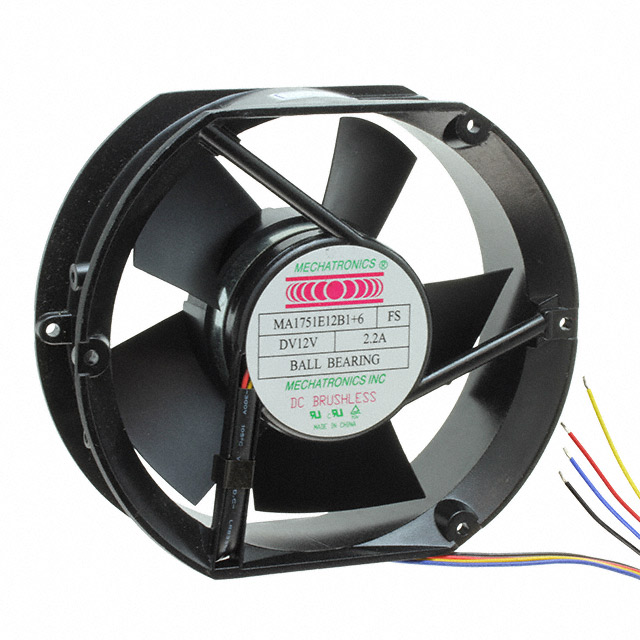

MA1751E12B1+6-FSR-EM

Active

Mechatronics Bearing Group

FAN AXIAL 172X50.8MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

MA1751E12B1+6-FSR-EM

Active

Mechatronics Bearing Group

FAN AXIAL 172X50.8MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA1751E12B1+6-FSR-EM

Air Flow	269.2 CFM
Air Flow	7.54 mł/min
Approval Agency	cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	2.2 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control, Thermal Overload Protector (TOP)
Ingress Protection	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	61 dB(A)
RPM	3150 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	166.9 Pa
Static Pressure	0.67 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Weight	771.1 g
Weight	1.7 lbs
Width [y]	2 "

MA1751 Series

Part	Air Flow	Air Flow	Weight	Weight	Current Rating (Amps)	RPM	Approval Agency	Material - Blade	Material - Frame	Noise	Fan Type	Bearing Type	Width [y]	Termination	Features	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Voltage - Rated	Voltage - Rated [custom]	Ingress Protection
Mechatronics Bearing Group MA1751X24B-FSR	290.6 CFM	8.14 m³/min	771.1 g	1.7 lbs	1.2 A	3400 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	63 dB	Tubeaxial	Ball	2 "	2 Wire Leads	Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	194.3 Pa	0.78 in H2O	24 VDC
Mechatronics Bearing Group MA1751H48B-FSR	243.6 CFM	6.82 mł/min	771.1 g	1.7 lbs	0.38 A	2850 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	58.4 dB(A)	Tubeaxial	Ball	2 "	2 Wire Leads	Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	137 Pa	0.55 in H2O		48 VDC
Mechatronics Bearing Group MA1751E12B1+6-FSR-EM	269.2 CFM	7.54 mł/min	771.1 g	1.7 lbs	2.2 A	3150 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	61 dB(A)	Tubeaxial	Ball	2 "	4 Wire Leads	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	166.9 Pa	0.67 in H2O	12 VDC		IP57 - Dust Protected Waterproof
Mechatronics Bearing Group MA1751H24B1+6-FSR	243.6 CFM	6.82 mł/min	771.1 g	1.7 lbs	770 mA	2850 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	58.4 dB(A)	Tubeaxial	Ball	2 "	4 Wire Leads	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	137 Pa	0.55 in H2O	24 VDC
Mechatronics Bearing Group MA1751X24B-FSR-CC	290.6 CFM	8.14 m³/min	771.1 g	1.7 lbs	1.2 A	3400 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	63 dB	Tubeaxial	Ball	2 "	2 Wire Leads	Conformal Coating Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	194.3 Pa	0.78 in H2O	24 VDC
Mechatronics Bearing Group MA1751E48B2-FSR-TTL	269.2 CFM	7.54 mł/min	771.1 g	1.7 lbs	0.55 A	3150 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	61 dB(A)	Tubeaxial	Ball	2 "	3 Wire Leads	Locked Rotor Sensor Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	166.9 Pa	0.67 in H2O		48 VDC
Mechatronics Bearing Group MA1751L12B-FSR	205 CFM	5.74 m³/min	771.1 g	1.7 lbs	1.1 A	2400 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	54.5 dB	Tubeaxial	Ball	2 "	2 Wire Leads	Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	97.1 Pa	0.39 in H2O	12 VDC
Mechatronics Bearing Group MA1751E24B-FSR	269.2 CFM	7.54 mł/min	771.1 g	1.7 lbs	0.98 A	3150 RPM	cUL TUV UL	Polybutylene Terephthalate (PBT)	Aluminum	61 dB(A)	Tubeaxial	Ball	2 "	2 Wire Leads	Thermal Overload Protector (TOP)	Rectangular/Rounded	150 mm	172 mm	166.9 Pa	0.67 in H2O	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 56.41

Description

General part information

MA1751 Series

Fan Tubeaxial 12VDC Rectangular/Rounded - 172mm L x 150mm H Ball 269.2 CFM (7.54mł/min) 4 Wire Leads
