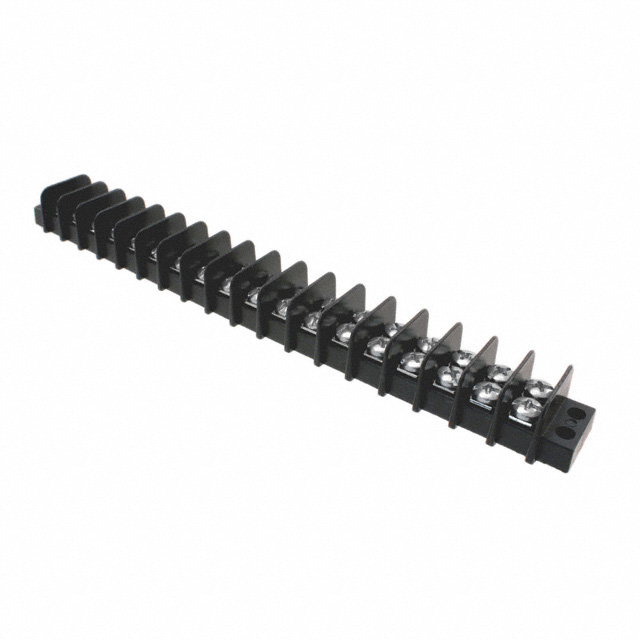

0387600118

Active

Molex

CONN BARRIER STRP 18CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0387600118

Active

Molex

CONN BARRIER STRP 18CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0387600118

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Color	Black
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	18
Number of Rows	2
Number of Wire Entries	36
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

038760 Series

Part	Number of Rows	Terminal Screw Material	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Top Termination	Mounting Type	Barrier Type	Color	Bottom Termination	Material Flammability Rating	Number of Wire Entries	Pitch [x]	Pitch [x]	Terminal Block Type	Current Rating (Amps)	Features	Terminal Screw Finish	Number of Circuits [custom]	Number of Circuits	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature
Molex 0387600108	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	16	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Clear Chromate Zinc	8
Molex 0387600105	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	10	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Clear Chromate Zinc		5
Molex 0387600303	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws with Captive Plate	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	6	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Clear Chromate Zinc		3
Molex 0387600128	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	56	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Chromate Zinc		28	-40 °C	110 °C
Molex 0387600406	2		Thermoplastic	14 AWG	24 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	12	9.53 mm	0.375 in	Barrier Block	20 A	Flange			6			110 °C
Molex 0387600316	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws with Captive Plate	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	32	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Clear Chromate Zinc		16
Molex 0387600204	2	Brass	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	8	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Nickel		4	-40 °C	110 °C
Molex 0387600314	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws with Captive Plate	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	28	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Chromate Zinc		14	-40 °C	110 °C
Molex 0387600226	2	Brass	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	52	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Nickel		26	-40 °C	110 °C
Molex 0387600118	2	Steel	Thermoplastic	14 AWG	22 AWG	300 VDC	Screws	Chassis Panel	2 Wall (Dual)	Black	Closed	UL94 V-0	36	9.53 mm	0.375 in	Barrier Block	15 A	Flange	Clear Chromate Zinc		18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.03
		10	$ 6.03
		30	$ 5.75
		50	$ 5.38

Description

General part information

038760 Series

18 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
