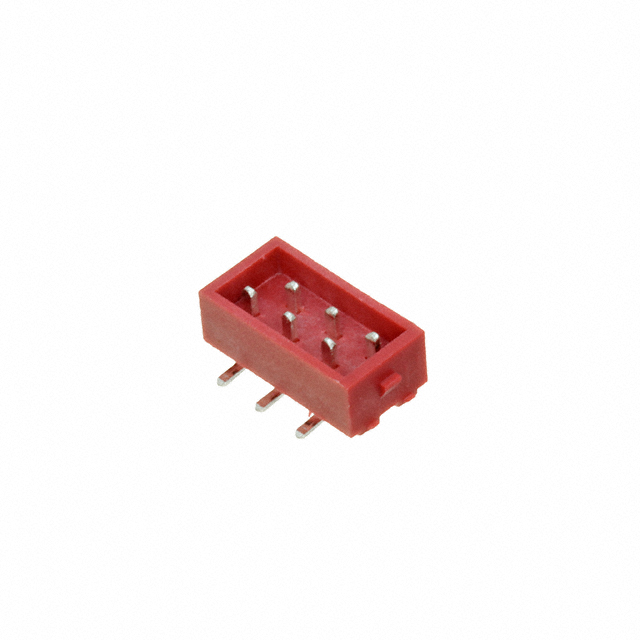

3522-06-0101-99

Active

CnC Tech, LLC

CONN HEADER SMD 6POS 2.54MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER SMD 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	3522-06-0101-99

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 VAC

Part	Shrouding	Number of Positions Loaded	Contact Material	Voltage Rating	Insulation Height	Insulation Height	Contact Type	Connector Type	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Number of Rows	Fastening Type	Number of Positions
CnC Tech, LLC 3522-06-0101-99	Shrouded - 4 Wall	All	Brass	500 VAC	3.7 mm	0.146 "	Male Pin	Header	Tin	Rectangular	-40 °C	105 ░C	UL94 V-0	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Solder	2	Locking Ramp	6
CnC Tech, LLC 3522-06-0100-99	Shrouded - 4 Wall	All	Brass	500 VAC	3.7 mm	0.146 "	Male Pin	Header	Tin	Rectangular	-40 °C	105 ░C	UL94 V-0	Through Hole	Board to Board Cable	0.1 in	2.54 mm	Nylon 9T Polyamide (PA9T)	Kinked Pin Solder	2	Locking Ramp	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.100" (2.54mm)
