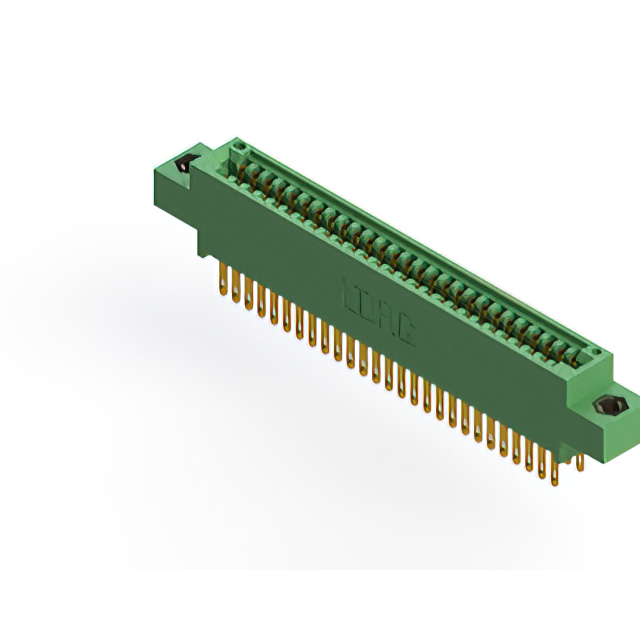

CONN EDGE DUAL FMALE 54POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-054-500-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 54POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-054-500-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 54 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
845-054 Series
...
| Part | Number of Rows | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Termination | Number of Positions | Material - Insulation | Read Out | Color | Contact Material | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Number of Positions/Bay/Row [custom] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 54 | 2.54 mm | 0.1 in | Solder Eyelet(s) | 54 | Diallyl Phthalate (DAP) | Single | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | ||||
EDAC Inc. | 2 | 2 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | 54 | Diallyl Phthalate (DAP) | Dual | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | 27 | ||||
EDAC Inc. | 2 | 2 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | 54 | Diallyl Phthalate (DAP) | Dual | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Board Edge Straddle Mount | 27 | Card Extender | |||
EDAC Inc. | 2 | 2 | M3 Threaded Insert Top Mount Opening | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder Eyelet(s) | 54 | Diallyl Phthalate (DAP) | Dual | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | 27 | ||||||
EDAC Inc. | 2 | 2 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Wire Wrap | 54 | Diallyl Phthalate (DAP) | Dual | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | 27 | ||||
EDAC Inc. | 1 | 1 | 4-40 Threaded Insert Top Mount Opening | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 54 | 2.54 mm | 0.1 in | Solder | 54 | Diallyl Phthalate (DAP) | Single | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | ||||||
EDAC Inc. | 2 | 2 | Side Mount Opening Unthreaded | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | 54 | Diallyl Phthalate (DAP) | Dual | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole Right Angle | 27 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1 | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 54 | 2.54 mm | 0.1 in | Solder | 54 | Diallyl Phthalate (DAP) | Single | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | ||||
EDAC Inc. | 2 | 2 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Solder | 54 | Diallyl Phthalate (DAP) | Dual | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole | 27 | ||||
EDAC Inc. | 1 | 1 | Side Mount Opening Unthreaded | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | 54 | 2.54 mm | 0.1 in | Solder | 54 | Diallyl Phthalate (DAP) | Single | Green | Copper Alloy | Female | 10 Áin | 0.25 Ám | Cantilever | Through Hole Right Angle | 3.25 mm | 0.128 in |
