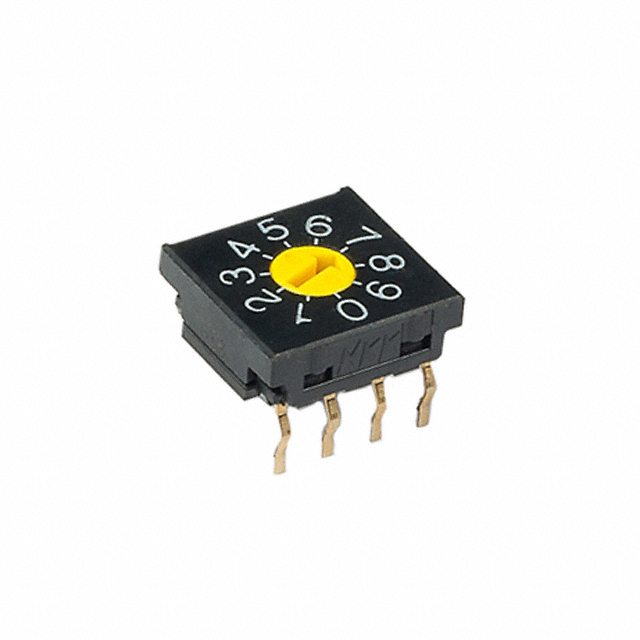

FR01FC10P-W-S

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Search across all available documentation for this part.

Active

NKK Switches

SW ROTARY DIP BCD COMP 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	FR01FC10P-W-S

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	BCD Complement
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board	0.15 "
Height Above Board	3.81 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

Part	Actuator Level	Height Above Board	Height Above Board	Voltage Rating	Actuator Type	Termination Style	Electrical Life	Body Material	Current Rating (Amps)	Length	Length	Mounting Type	Contact Material	Contact Finish	Mechanical Life	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Height Above Board [z]	Height Above Board [z]
NKK Switches FR01FC10P	Flush Recessed	0.15 "	3.81 mm	5 V	Rotary for Tool	PC Pin	10000 Cycles	Polyamide (PA) Nylon Glass Filled	100 mA	10 mm	0.394 in	Through Hole	Copper Alloy	Gold	10000 Steps	BCD Complement	-25 °C	85 °C	10	0.1 in	Full	2.54 mm
NKK Switches FR01FC10P-W-S	Flush Recessed	0.15 "	3.81 mm	5 V	Rotary for Tool	PC Pin	10000 Cycles	Polyamide (PA) Nylon Glass Filled	100 mA	10 mm	0.394 in	Through Hole	Copper Alloy	Gold	10000 Steps	BCD Complement	-25 °C	85 °C	10	0.1 in	Full	2.54 mm
NKK Switches FR01FC10H-06XL	Flush Recessed			5 V	Rotary for Tool	PC Pin	10000 Cycles	Polyamide (PA) Nylon Glass Filled	100 mA	10 mm	0.394 in	Through Hole Right Angle	Copper Alloy	Gold	10000 Steps	BCD Complement	-25 °C	85 °C	10	0.1 in	Full	2.54 mm	10 mm	0.394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD Complement 10 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
