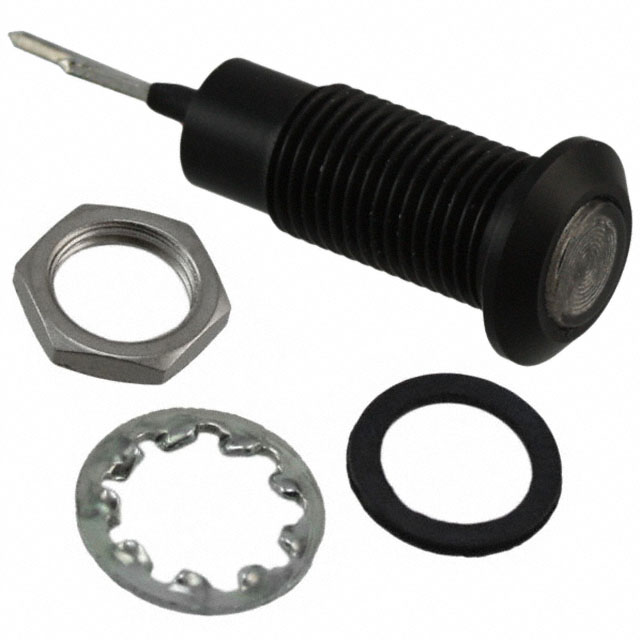

PM5-A5G28V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 6.35MM GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-A5G28V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 5.1 mm |
| Lens Transparency | Fresnel |
| Millicandela Rating | 576 mcd |
| Panel Cutout Dimensions | 6.35 mm |
| Panel Cutout Dimensions | 0.25 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Viewing Angle | 120 ° |
| Voltage [Max] | 28 V |
| Voltage [Min] | 24 V |
| Wavelength - Peak | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM5-A5G28 Series
LED Panel Indicator Green Fresnel 120° 24V ~ 28V 20mA PC Pin
