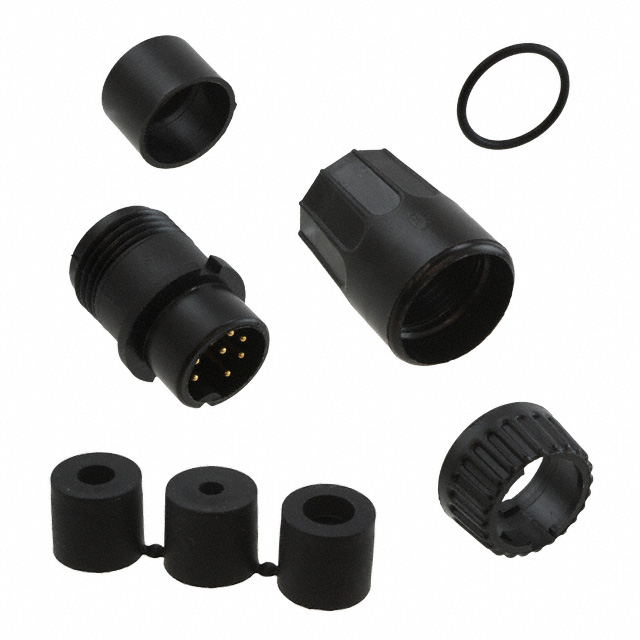

3282-8PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Backshell Material, Plating	Contact Finish - Mating	Fastening Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Mounting Type	Current Rating (Amps)	Number of Positions	Orientation	Shielding	Contact Material	Features	Connector Type	Color	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-8PG-3DC	Nylon Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins Plug	Black
Conxall/Switchcraft 3282-8PG-530	Nylon Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell Cable Clamp	Male Pins Plug	Black	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3282-8PG-318	Nylon Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins Plug	Black					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-8PG-315	Nylon Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins Plug	Black									0.15 in 0.17 in	3.81 mm 4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Solder Cup
