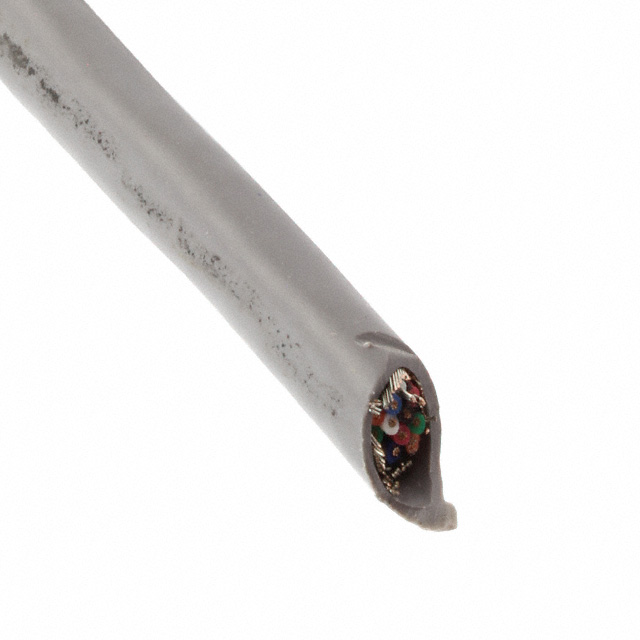

M1612 SL199

Active

ALPHA WIRE

CABLE 12COND 28AWG SHLD 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 28AWG SHLD 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	M1612 SL199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.33 mm
Jacket (Insulation) Diameter [diameter]	0.21 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	914.4 m
Length	3000 ft
Number of Conductors	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	28 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Cable Type	Shield Type	Wire Gauge	Shield Coverage	Conductor Insulation	Voltage
ALPHA WIRE M1612 SL199	105 ░C	-55 °C	Copper Tinned	Slate	12	5.33 mm	0.21 in	0.02 in	0.508 mm	Copper Tinned	914.4 m	3000 ft	36 AWG	7	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Braid	28 AWG	90 %	Poly-Vinyl Chloride (PVC)	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.34
Newark	1 Foot	25	$ 3.62

General part information

12 Conductor Multi-Conductor Cable Slate 28 AWG Braid 3000' (914.4m)
