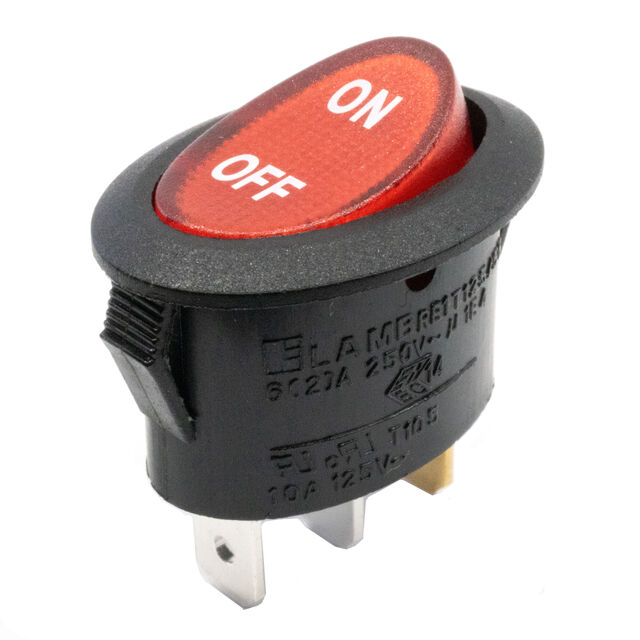

RE11131023-115

Active

E-Switch

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RE11131023-115

Actuator Marking	Vertical, ON OFF
Actuator Type	Oval - Illuminated
Approval Agency	UL, VDE, cUL
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	24 V
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Illumination Type, Color	Actuator Type	Switch Function	Termination Style	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Mounting Type	Approval Agency	Voltage Rating - AC	Electrical Life	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking
E-Switch RE11131023-115	Incandescent Red	Oval - Illuminated	On-Off	Quick Connect - 0.187" (4.7mm)	10 A	SPST	24 V	Panel Mount Snap-In	cUL UL VDE	125 V	10000 Cycles	Red	-20 C	105 ░C	ON OFF Vertical
E-Switch RE11131023-135	Green Incandescent	Oval - Illuminated	On-Off	Quick Connect - 0.187" (4.7mm)	10 A	SPST	24 V	Panel Mount Snap-In	cUL UL VDE	125 V	10000 Cycles	Green	-20 C	105 ░C	ON OFF Vertical
E-Switch RE11131021-134	Green Incandescent	Oval - Illuminated	On-Off	Quick Connect - 0.187" (4.7mm)	10 A	SPST	12 VDC	Panel Mount Snap-In	cUL UL VDE	125 V	10000 Cycles	Green	-20 C	105 ░C	O -

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
