EGG.3B.324.CLL

Active

LEMO

CONN RCPT FMALE 24P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.3B.324.CLL

Active

LEMO

CONN RCPT FMALE 24P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.3B.324.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	24
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	324
Shielding	Shielded

EGG.3B Series

Part	Connector Type	Number of Positions	Ingress Protection	Current Rating (Amps)	Material Flammability Rating	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Orientation	Shell Finish	Color	Shell Material	Contact Finish - Mating	Fastening Type	Shielding	Shell Size - Insert	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Mounting Type	Number of Positions	Note	Contact Shape	Contact Type	Contact Size	Type	Number of Positions [custom]	Number of Positions [custom]	Features
LEMO EGG.3B.324.CLL	Receptacle Female Sockets	24	IP50	4 A	UL94 V-0	Bulkhead - Rear Side Nut	-55 °C	250 °C	Metal	G	Chrome	Silver	Brass	Gold	Push-Pull	Shielded	324	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze
LEMO EGG.3B.316.CLN	Receptacle Female Sockets		IP50	8 A	UL94 V-0	Bulkhead - Rear Side Nut	-55 °C	250 °C	Metal	G	Chrome	Silver	Brass	Gold	Push-Pull	Shielded	316	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze	Solder	Panel Mount Through Hole	16
LEMO EGG.3B.420.YL		20	IP50				-55 °C	250 °C		G						Unshielded	420								Note: Contacts Not Included; Insert Only Requires Shell	Circular	Crimp and Solder Cup	0.7 mm	For Female Sockets
LEMO EGG.3B.042.CLL	Receptacle Female Sockets	8	IP50	5 A	UL94 V-0	Bulkhead - Rear Side Nut	-55 °C	250 °C	Metal	G	Chrome	Silver	Brass	Gold	Push-Pull	Shielded	42	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze
LEMO EGG.3B.844.CLL1	Receptacle Female Sockets		IP50	10 A	UL94 V-0	Bulkhead - Rear Side Nut	-55 °C	250 °C	Metal	G	Chrome	Silver	Brass	Gold	Push-Pull	Shielded	844	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze									2	4
LEMO EGG.3B.406.YL		6	IP50				-55 °C	250 °C		G						Unshielded	406								Note: Contacts Not Included; Insert Only Requires Shell	Circular	Crimp and Solder Cup	1.6 mm	For Female Sockets
LEMO EGG.3B.326.ZLL	Female Sockets Insert	26	IP50	4 A	UL94 V-0		-55 °C	250 °C		G				Gold		Shielded	326	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze											Insert Only Requires Shell
LEMO EGG.3B.314.CLL	Receptacle Female Sockets	14	IP50	9 A	UL94 V-0	Bulkhead - Rear Side Nut	-55 °C	250 °C	Metal	G	Chrome	Silver	Brass	Gold	Push-Pull	Shielded	314	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze
LEMO EGG.3B.404.ML		4	IP50				-55 °C	250 °C		G						Unshielded	404								Note: Contacts Not Included; Insert Only Requires Shell	Circular	Crimp and Solder Cup	2 mm	For Female Sockets
LEMO EGG.3B.305.ZLL	Female Sockets Insert		IP50	19 A	UL94 V-0		-55 °C	250 °C		G				Gold		Shielded	305	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Bronze											Insert Only Requires Shell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 119.61
		10	$ 109.76
		25	$ 105.53
		50	$ 102.02
		100	$ 96.39

Description

General part information

EGG.3B Series

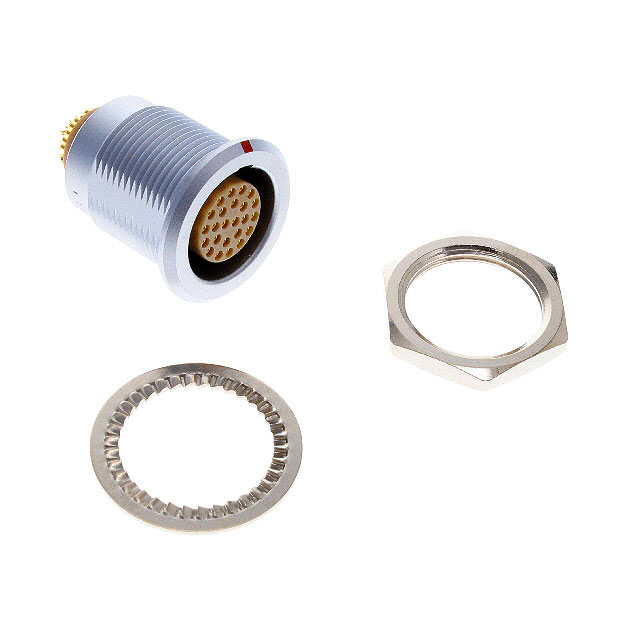

24 Position Circular Connector Receptacle, Female Sockets Solder Cup
