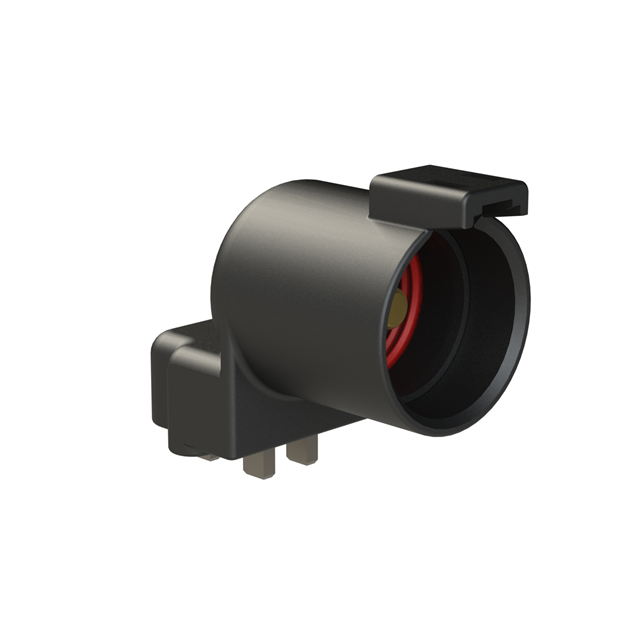

ATFHD13-1-4P-BM11

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 1POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsATHD Series A Series Family +1

ATFHD13-1-4P-BM11

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 1POS GOLD SOLDER

Deep-Dive with AI

DocumentsATHD Series A Series Family +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATFHD13-1-4P-BM11

Applications	Military, Agriculture, Transportation, Marine
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 A
Fastening Type	Latch Lock
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	1000 VDC

ATFHD13 Series

Part	Shielding	Number of Positions	Current Rating (Amps)	Orientation	Contact Material	Fastening Type	Connector Type	Insert Material	Primary Material	Color	Voltage Rating	Ingress Protection	Mounting Type	Termination	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating
Amphenol Sine Systems Corp ATFHD13-1-8P-BM13	Unshielded	1	60 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	500 V	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Nickel
Amphenol Sine Systems Corp ATFHD13-1-4P-BM11	Unshielded	1	100 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	1000 VDC	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Gold
Amphenol Sine Systems Corp ATFHD13-1-12P-BM13	Unshielded	1	25 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	500 V	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C
Amphenol Sine Systems Corp ATFHD13-1-8P-BM03	Unshielded	1	60 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	500 V	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Nickel
Amphenol Sine Systems Corp ATFHD13-1-8P-BM01	Unshielded	1	60 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	500 V	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Gold
Amphenol Sine Systems Corp ATFHD13-1-4P-BM13	Unshielded	1	100 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	1000 VDC	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Nickel
Amphenol Sine Systems Corp ATFHD13-1-8P-BM11	Unshielded	1	60 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	500 V	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Gold
Amphenol Sine Systems Corp ATFHD13-1-12P-BM11	Unshielded	1	25 A	Keyed	Copper Alloy	Latch Lock	Male Pins Receptacle	Thermoplastic	Plastic	Black	500 V	IP67 IP69K	Through Hole Right Angle	Solder	Agriculture Marine Military Transportation	-55 °C	125 °C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.52
		10	$ 10.85
		25	$ 10.50

Description

General part information

ATFHD13 Series

1 (Power) Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

ATHD Series

Datasheet

A Series Family

Datasheet
