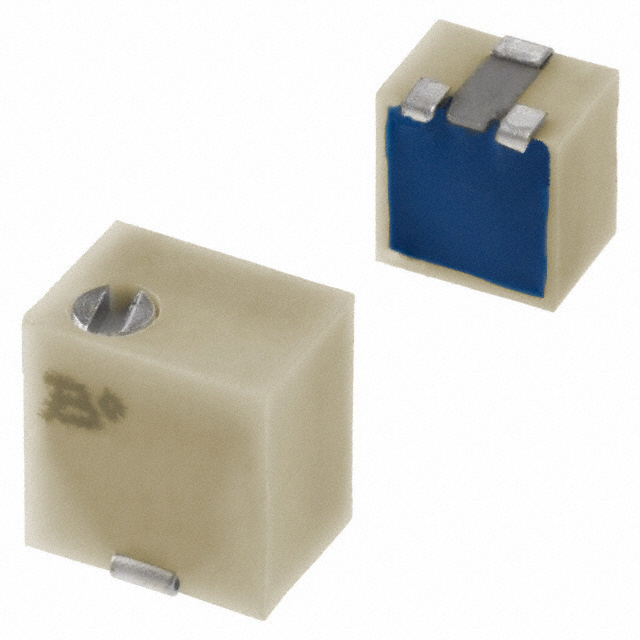

3214W-1-200E
ActiveBourns Inc.
TRIMMER 20 OHM 0.25W J LEAD TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3214W-1-200E
ActiveBourns Inc.
TRIMMER 20 OHM 0.25W J LEAD TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3214W-1-200E |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 5 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 20 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.189 " |
| Size / Dimension [x] | 4.8 mm |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.07 | |
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.23 | |||
| Digi-Reel® | 1 | $ 3.07 | ||
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.23 | |||
| Tape & Reel (TR) | 250 | $ 2.14 | ||
| 500 | $ 1.77 | |||
| 750 | $ 1.72 | |||
| 1250 | $ 1.67 | |||
| 2500 | $ 1.44 | |||
| 6250 | $ 1.39 | |||
Description
General part information
3214W Series
20 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 5.0 Turn Top Adjustment
