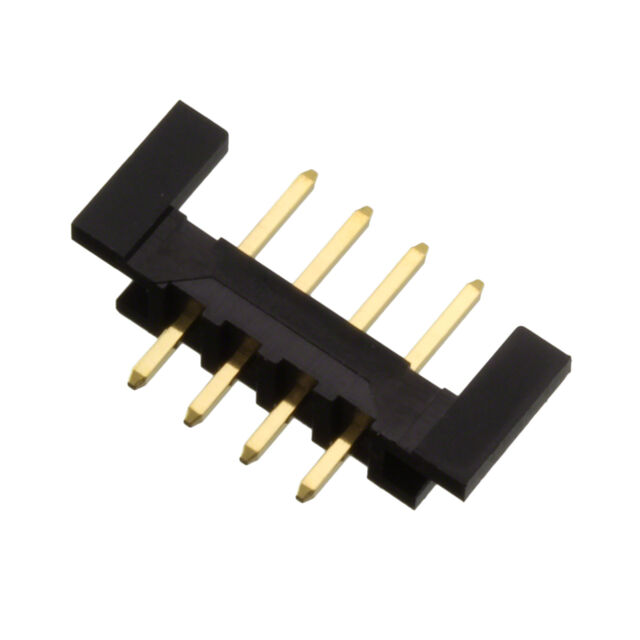

HNC2-2.5P-4DS(01)

LTB

Hirose Electric USA, Inc.

CONN HEADER VERT 4POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HNC2-2.5P-4DS(01)

LTB

Hirose Electric USA, Inc.

CONN HEADER VERT 4POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HNC2-2.5P-4DS(01)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Length - Mating	0.197 in
Contact Length - Mating	5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	15.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.433 in
Overall Contact Length	11 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

HNC2 Series

Part	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Material	Shrouding	Number of Positions Loaded	Contact Shape	Number of Positions	Insulation Material	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Termination	Number of Rows	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating
Hirose Electric USA, Inc. HNC2-2.5P-2DS(54)	Push-Pull	0.433 in	11 mm	Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	2	Nylon Polyamide (PA)	0.118 in	3 mm	15.5 mm	0.197 in	5 mm	Solder	1	Header	6.5 mm	0.256 in	UL94 V-0	Through Hole	250 VDC	2.5 mm	0.098 in	Board to Board Cable
Hirose Electric USA, Inc. HNC2-2.5P-6DS(55)	Push-Pull	0.433 in	11 mm	Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	6	Nylon Polyamide (PA)	0.118 in	3 mm	15.5 mm	0.197 in	5 mm	Solder	1	Header	6.5 mm	0.256 in	UL94 V-0	Through Hole	250 VDC	2.5 mm	0.098 in	Board to Board Cable	1 µm	39.4 µin
Hirose Electric USA, Inc. HNC2-2.5P-2DSL(55)	Push-Pull			Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	2	Nylon Polyamide (PA)	0.118 in	3 mm		0.197 in	5 mm	Solder	1	Header	4.3 mm	0.169 "	UL94 V-0	Through Hole Right Angle	250 VDC	2.5 mm	0.098 in	Board to Board Cable	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. HNC2-2.5P-2DS(02)	Push-Pull	0.433 in	11 mm	Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	2	Nylon Polyamide (PA)	0.118 in	3 mm	15.5 mm	0.197 in	5 mm	Solder	1	Header	6.5 mm	0.256 in	UL94 V-0	Through Hole	250 VDC	2.5 mm	0.098 in	Board to Board Cable	0.203 Ám	8 Áin		Gold
Hirose Electric USA, Inc. HNC2-2.5P-7DS(55)	Push-Pull	0.433 in	11 mm	Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	7	Nylon Polyamide (PA)	0.118 in	3 mm	15.5 mm	0.197 in	5 mm	Solder	1	Header	6.5 mm	0.256 in	UL94 V-0	Through Hole	250 VDC	2.5 mm	0.098 in	Board to Board Cable	1 µm	39.4 µin
Hirose Electric USA, Inc. HNC2-2.5P-3DSL(72)
Hirose Electric USA, Inc. HNC2-2.5P-4DS(01)	Push-Pull	0.433 in	11 mm	Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	4	Nylon Polyamide (PA)	0.118 in	3 mm	15.5 mm	0.197 in	5 mm	Solder	1	Header	6.5 mm	0.256 in	UL94 V-0	Through Hole	250 VDC	2.5 mm	0.098 in	Board to Board Cable	0.3 µm	12 µin		Gold
Hirose Electric USA, Inc. HNC2-2.5P-4DS(55)	Push-Pull	0.433 in	11 mm	Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	4	Nylon Polyamide (PA)	0.118 in	3 mm	15.5 mm	0.197 in	5 mm	Solder	1	Header	6.5 mm	0.256 in	UL94 V-0	Through Hole	250 VDC	2.5 mm	0.098 in	Board to Board Cable	1 µm	39.4 µin
Hirose Electric USA, Inc. HNC2-2.5P-15DSL(01)	Push-Pull			Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	15	Nylon Polyamide (PA)	0.118 in	3 mm		0.197 in	5 mm	Solder	1	Header	4.3 mm	0.169 "	UL94 V-0	Through Hole Right Angle	250 VDC	2.5 mm	0.098 in	Board to Board Cable				Gold
Hirose Electric USA, Inc. HNC2-2.5P-4DSL(55)	Push-Pull			Male Pin	85 °C	-55 °C	Black	Brass	Unshrouded	All	Square	4	Nylon Polyamide (PA)	0.118 in	3 mm		0.197 in	5 mm	Solder	1	Header	4.3 mm	0.169 "	UL94 V-0	Through Hole Right Angle	250 VDC	2.5 mm	0.098 in	Board to Board Cable	1 µm	39.4 µin	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.76
		10	$ 0.62
		25	$ 0.57
		50	$ 0.54
		100	$ 0.50
		300	$ 0.46
		500	$ 0.44
		1000	$ 0.41
		2500	$ 0.38

Description

General part information

HNC2 Series

Connector Header Through Hole 4 position 0.098" (2.50mm)

Documents

Technical documentation and resources
