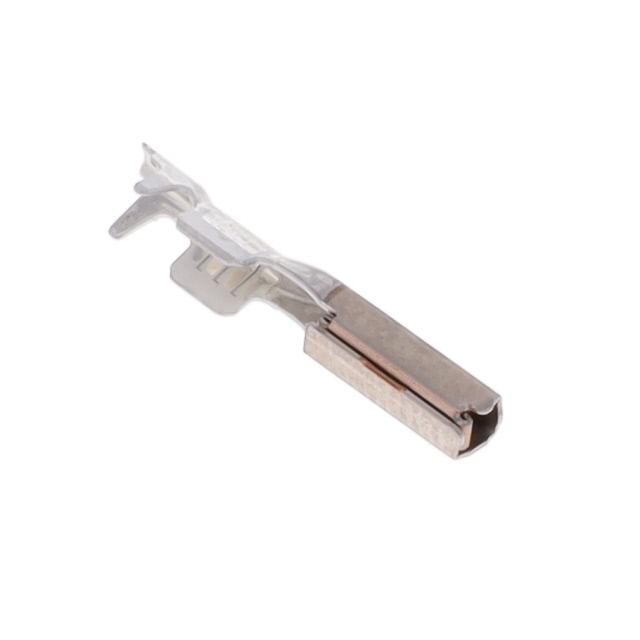

0334670023
ActiveMolex
CONN SOCKET 18-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
Documents33468-002 Appl Spec
0334670023
ActiveMolex
CONN SOCKET 18-20AWG CRIMP GOLD
Deep-Dive with AI
Documents33468-002 Appl Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | 0334670023 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
033467 Series
| Part | Contact Termination | Wire Gauge | Pin or Socket | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Type | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|
Molex | Crimp | 22 AWG | Socket | Gold | |||||
Molex | Crimp | 22 AWG | Socket | Gold | 0.76 Ám | 30 Áin | Power | ||
Molex | Crimp | Socket | Gold | 0.76 Ám | 30 Áin | Stamped | 17.5 AWG | 20 AWG | |
Molex | Crimp | Socket | Gold | 0.76 Ám | 30 Áin | Stamped | 17.5 AWG | 20 AWG | |
Molex | Crimp | Socket | Gold | 0.76 Ám | 30 Áin | 17.5 AWG | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
| Tape & Reel (TR) | 9000 | $ 0.08 | ||
| 18000 | $ 0.08 | |||
| 27000 | $ 0.08 | |||
| 63000 | $ 0.08 | |||
Description
General part information
033467 Series
Socket Contact Gold 18-20 AWG Crimp Stamped
