1521-60201

Active

Amphenol SV Microwave

2.92MM FEMALE SOLDERLESS PCB EDG

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM FEMALE SOLDERLESS PCB EDG

Technical Specifications

Parameters and characteristics for this part

Part	Connector Style	Mounting Feature	Mounting Type	Impedance	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Frequency - Max [Max]	Dielectric Material	Housing Color	Contact Termination	Center Contact Plating	Shield Termination	Connector Type	Number of Ports	Mating Cycles	Cable Group	Cable Group
Amphenol SV Microwave 1521-60194	2.92 mm	Flange	Surface Mount	50 Ohms	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	40 GHz	Polyetherimide (PEI)	Silver	Compression	Gold	Screw	Female Socket Jack	1	500
Amphenol SV Microwave 1521-60187	2.92 mm	Flange	Surface Mount	50 Ohms	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	40 GHz	Polyetherimide (PEI)	Silver	Compression	Gold	Screw	Female Socket Jack	1	500
Amphenol SV Microwave 1521-60201	2.92 mm		Board Edge End Launch	50 Ohms	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	40 GHz	Polyetherimide (PEI)	Silver	Compression	Gold	Screw	Female Socket Jack	1	500
Amphenol SV Microwave 1521-60198	2.92 mm	Bulkhead - Front Side Nut		50 Ohms	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	40 GHz	Polyetherimide (PEI)	Silver	Solder	Gold	Clamp	Female Socket Jack	1	500	RG-405 (.085" Semi Rigid)
Amphenol SV Microwave 1521-60199	2.92 mm	Bulkhead - Front Side Nut		50 Ohms	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	40 GHz	Polyetherimide (PEI)	Silver	Solder	Gold	Clamp	Female Socket Jack	1	500	Semi Rigid	0.047 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

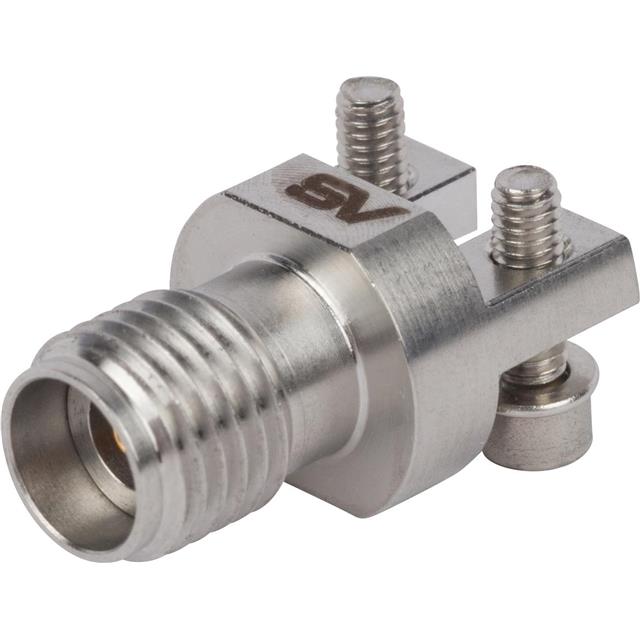

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
