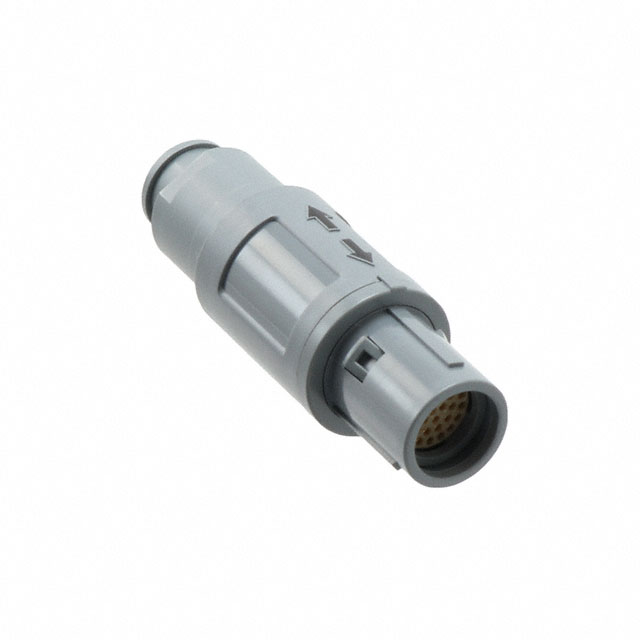

CAH.M34.SLL.C72GZ

Active

LEMO

CONN PLUG FMALE 34P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 34P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CAH.M34.SLL.C72GZ

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polyetherimide (PEI)
Cable Opening [custom]	5.3 mm, 7.2 mm
Cable Opening [custom]	0.209 in, 0.283 in
Color	Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	1.5 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	34
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	H
Primary Material	Plastic
Shell Material	Polyetherimide (PEI)
Shell Size - Insert	M34
Shielding	Unshielded

Part	Fastening Type	Shielding	Number of Positions	Color	Backshell Material, Plating	Orientation	Shell Material	Mounting Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Primary Material	Applications	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Ingress Protection	Current Rating (Amps)	Features
LEMO CAH.M34.SLL.C72GZ	Detent Lock Push-Pull	Unshielded	34	Gray	Polyetherimide (PEI)	H	Polyetherimide (PEI)	Free Hanging (In-Line)	M34	-50 °C	170 °C	Female Sockets Plug	Plastic	Automotive Industrial Medical Testing Equipment & Measurement	Gold	5.3 mm 7.2 mm	0.209 in 0.283 in	Polyetheretherketone (PEEK)	IP50	1.5 A	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Circular Connector Plug, Female Sockets Solder Cup
