Technical Specifications
Parameters and characteristics for this part
| Specification | 31_SMA-TNC-50-1/1--_UE |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Jack to Jack |
| Body Material | Beryllium Copper, Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.34 | |
| 10 | $ 49.87 | |||
| 25 | $ 47.95 | |||
| 50 | $ 46.35 | |||
| 100 | $ 43.79 | |||
Description
General part information
31_SMA-TNC Series

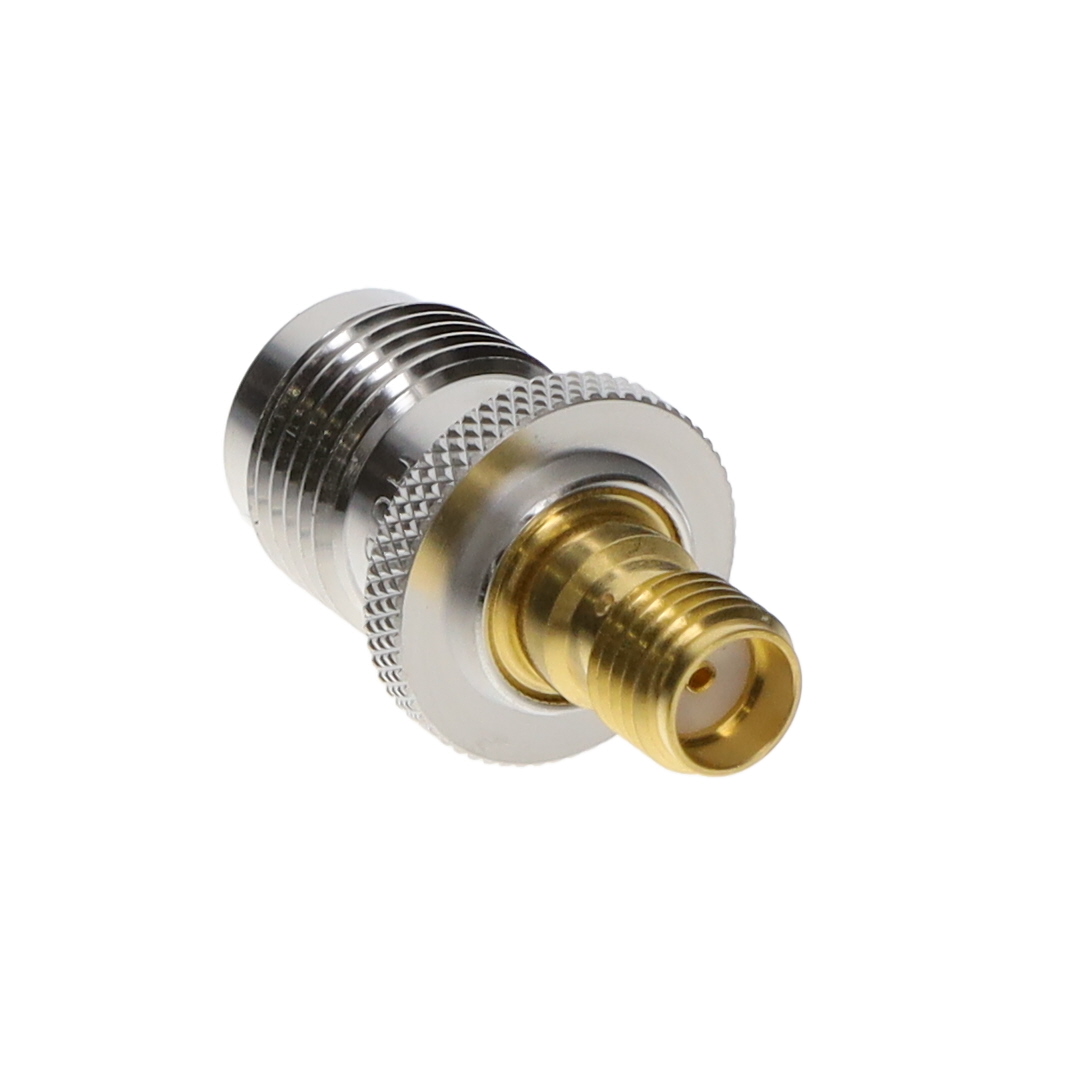

Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
