SN74ACT2235-60FN

Obsolete

Texas Instruments

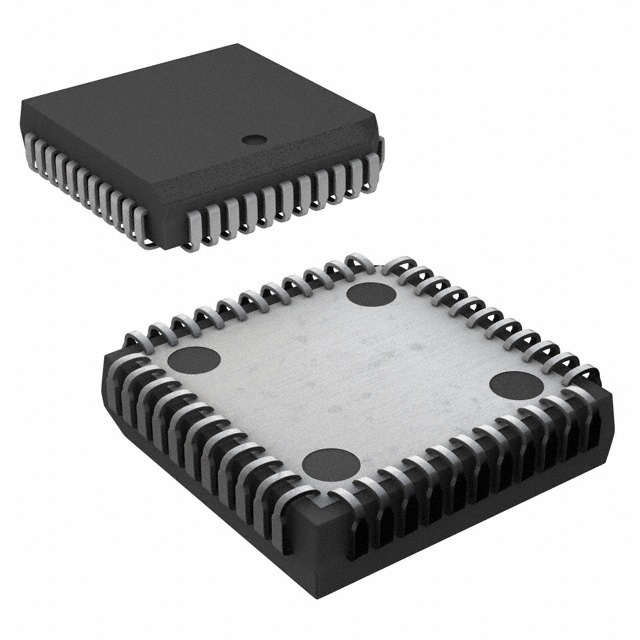

IC FIFO ASYNC 1KX9X2 44PLCC

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC FIFO ASYNC 1KX9X2 44PLCC

Technical Specifications

Parameters and characteristics for this part

Part	Current - Supply (Max) [Max]	Memory Size	Function	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Bus Directional	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Access Time	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package
Texas Instruments SN74ACT2235-40FN	400 µA	18 K	Asynchronous	70 °C	0 °C	25 MHz	Bi-Directional	Surface Mount	4.5 V	5.5 V	44-LCC (J-Lead)	35 ns	16.58	16.58	44-PLCC
Texas Instruments SN74ACT2235-60FN	400 µA	18 K	Asynchronous	70 °C	0 °C	16.7 MHz	Bi-Directional	Surface Mount	4.5 V	5.5 V	44-LCC (J-Lead)	45 ns	16.58	16.58	44-PLCC
Texas Instruments SN74ACT2235-30FN
Texas Instruments SN74ACT2235-30PAG	400 µA	18 K	Asynchronous	70 °C	0 °C	33 MHz	Bi-Directional	Surface Mount	4.5 V	5.5 V	64-TQFP	25 ns			64-TQFP (10x10)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Asynchronous FIFO 18K (1K x 9 x 2) Bi-Directional 16.7MHz 45ns 44-PLCC (16.58x16.58)

Technical documentation and resources
