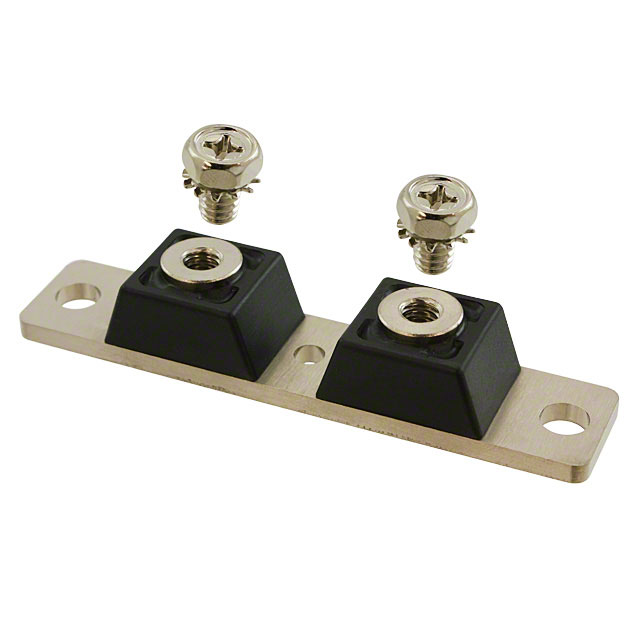

MBR400100CT

Active

GeneSiC Semiconductor

DIODE MOD SCHOT 100V 200A 2TOWER

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE MOD SCHOT 100V 200A 2TOWER

Technical Specifications

Parameters and characteristics for this part

Specification	MBR400100CT

Current - Average Rectified (Io) (per Diode)	200 A
Current - Reverse Leakage @ Vr	5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Twin Tower
Speed	200 mA, 500 ns
Supplier Device Package	Twin Tower
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V

Part	Current - Reverse Leakage @ Vr	Speed	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Technology	Mounting Type	Diode Configuration
GeneSiC Semiconductor MBR400100CT	5 mA	200 mA 500 ns	200 A	Twin Tower	100 V	150 °C	-55 °C	Twin Tower	Schottky	Chassis Mount	1 Pair Common Cathode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 100 V 200A Chassis Mount Twin Tower
