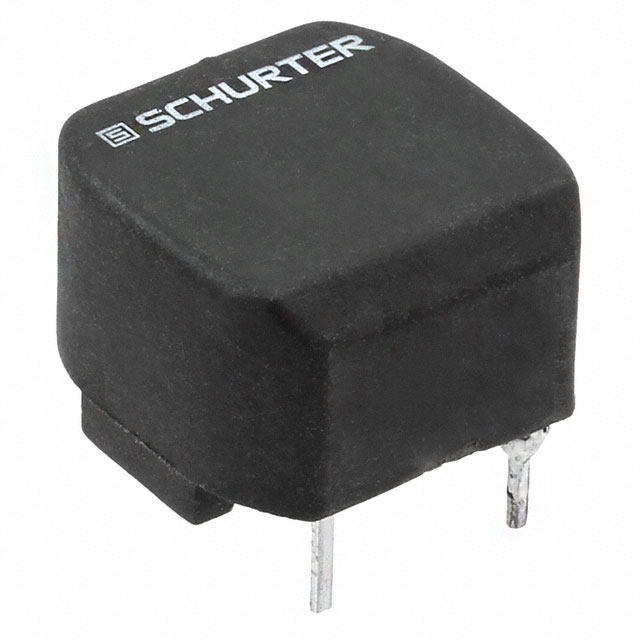

DLF-18-0006
ActiveSCHURTER Inc.
CMC 4A 1LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DLF-18-0006
ActiveSCHURTER Inc.
CMC 4A 1LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLF-18-0006 |
|---|---|
| Current Rating (Amps) | 4 A |
| DC Resistance (DCR) | 17 mOhm |
| Frequency - Self Resonant | 28 MHz |
| Height - Seated (Max) [Max] [z] | 0.496 " |
| Height - Seated (Max) [Max] [z] | 12.6 mm |
| Inductance | 15 µH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal, 4 Leads, Radial |
| Shielding | Unshielded |
| Size / Dimension [x] | 18.2 mm |
| Size / Dimension [x] | 0.717 in |
| Size / Dimension [y] | 17.8 mm |
| Size / Dimension [y] | 0.701 in |
| Tolerance | 15 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.30 | |
| 50 | $ 2.79 | |||
| 100 | $ 2.48 | |||
Description
General part information
DLF-18 Series
15 µH Unshielded Inductor 4 A 17mOhm Radial, Horizontal, 4 Leads
