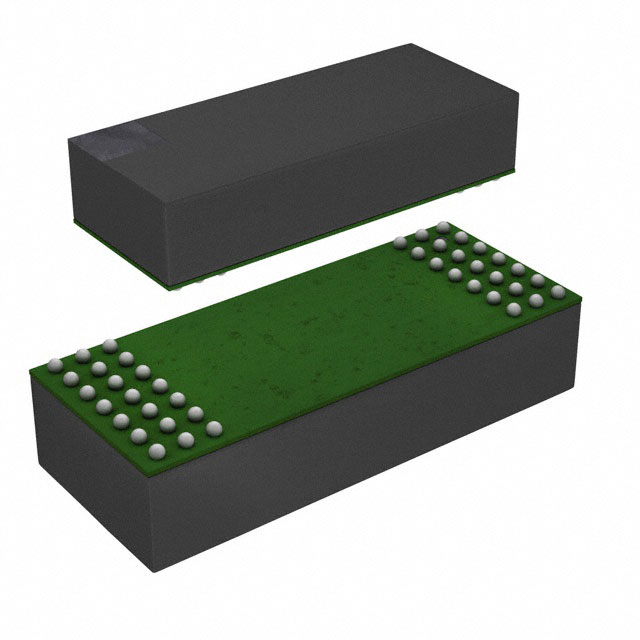

The LTM2885 is a complete galvanically isolated full-duplex RS485/RS422 μModule®(micromodule) transceiver. No external components are required. A single supply powers both sides of the interface through an integrated, isolated, low noise, efficient 5V output DC/DC converter.Coupled inductors and an isolation power transformer provide 6500VRMSof isolation between the line transceiver and the logic interface. This device is ideal for systems where the ground loop is broken allowing for large common mode voltage variation. Uninterrupted communication is guaranteed for common mode transients up to 50kV/μs.Maximum data rates are 20Mbps or 250kbps in slew limited mode. Transmit data, DI, and receive data, RO, are implemented with event driven low jitter processing. The receiver has a one-eighth unit load supporting up to 256 nodes per bus. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.Enhanced ESD protection allows this part to withstand up to ±15kV (human body model) on the transceiver interface pins to isolated supplies and ±25kV through the isolation barrier to logic supplies without latch-up or damage.APPLICATIONSIsolated RS485/RS422 InterfaceIndustrial NetworksBreaking RS485 Ground LoopsIsolated PROFIBUS-DP Networks
