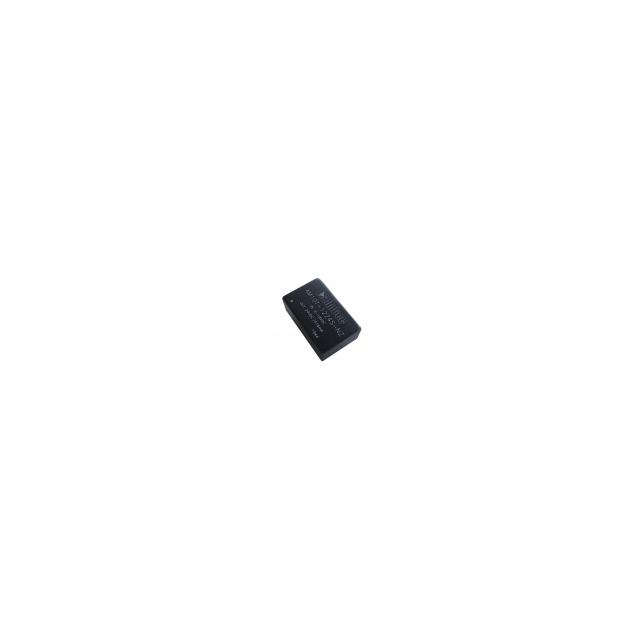

AM10T-2415SNZ

Unknown

aimtec

DC DC CONVERTER 15V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM10T-2415SNZ

Unknown

aimtec

DC DC CONVERTER 15V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM10T-2415SNZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	667 mA
Efficiency	87 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9 PC Pad
Package / Case	24-DIP Module
Power (Watts)	10 W
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

AM10T Series

Part	Voltage - Output 1	Features	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Type	Voltage - Isolation	Power (Watts)	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
aimtec AM10TWM-4815SH50YZ	15 V	Remote On/Off	24-DIP Module 8 Leads	Through Hole	75 V	Isolated Module	5000 V	10 W	1	84 %	18 V	Medical	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	670 mA
aimtec AM10TWM-4805SH50YZ	5 V	Remote On/Off	24-DIP Module 8 Leads	Through Hole	75 V	Isolated Module	5000 V	10 W	1	84 %	18 V	Medical	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	2 A
aimtec AM10TWM-4812DH50YZ	12 V	Remote On/Off	24-DIP Module 8 Leads	Through Hole	75 V	Isolated Module	5000 V	10 W	2	85 %	18 V	Medical	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in		-12 V	420 mA	420 mA
aimtec AM10TWM-2405DH50YZ	5 V	Remote On/Off	24-DIP Module 8 Leads	Through Hole	36 V	Isolated Module	5000 V	10 W	2	84 %	9 V	Medical	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in		-5 V	1 A	1 A
aimtec AM10TW-4815S-NZ	15 V	Remote On/Off	24-DIP Module	Through Hole	75 V	Isolated Module	1.5 kV	10 W	1	87 %	18 V	ITE (Commercial)							667 mA				85 °C	-40 °C	CE UL
aimtec AM10T-2415DNZ	15 V		24-DIP Module	Through Hole	36 V	Isolated Module	1.5 kV	10 W	2	87 %	18 V	ITE (Commercial)								-15 V	333 mA	333 mA	85 °C	-40 °C		9 PC Pad
aimtec AM10T-2415SNZ	15 V		24-DIP Module	Through Hole	36 V	Isolated Module	1.5 kV	10 W	1	87 %	18 V	ITE (Commercial)							667 mA				85 °C	-40 °C		9 PC Pad
aimtec AM10TW-4824S-NZ	24 V	Remote On/Off	24-DIP Module	Through Hole	75 V	Isolated Module	1.5 kV	10 W	1	88 %	18 V	ITE (Commercial)							416 mA				85 °C	-40 °C	CE UL
aimtec AM10TWM-2403SH50YZ	3.3 V	Remote On/Off	24-DIP Module 8 Leads	Through Hole	36 V	Isolated Module	5000 V	10 W	1	83 %	9 V	Medical	0.79 "	1.24 in	20.1 mm	31.6 mm	10 mm	0.39 in	2.5 A
aimtec AM10TW-4805D-NZ		Remote On/Off	24-DIP Module	Through Hole	75 V	Isolated Module	1.5 kV	10 W	2	85 %	18 V	ITE (Commercial)								-5 V	1 A	1 A	85 °C	-40 °C	CE UL		5 V	-5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.90
		5	$ 19.75
		15	$ 19.36
		30	$ 19.16
		60	$ 18.97
		90	$ 18.59
		120	$ 18.41
		150	$ 18.22

Description

General part information

AM10T Series

Isolated Module DC DC Converter 1 Output 15V 667mA 18V - 36V Input
