A201606LP
ActiveHoffman Enclosures, Inc.

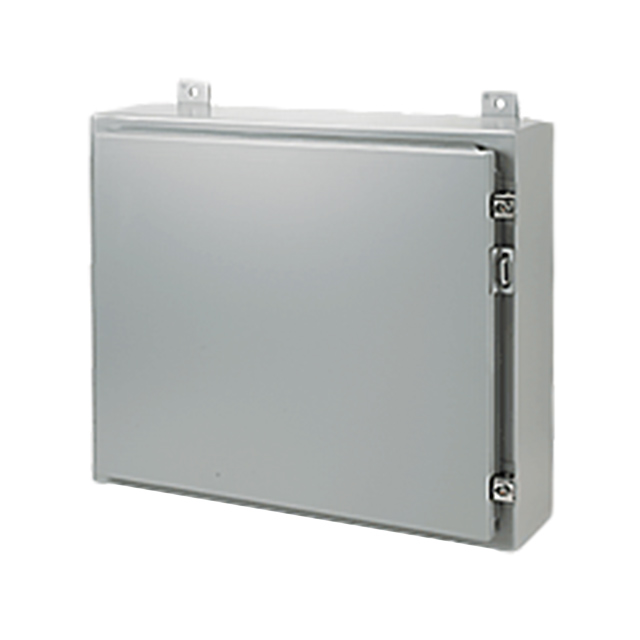

JUNCTION BOX STEEL 20"L X 16"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A201606LP
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STEEL 20"L X 16"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A201606LP |
|---|---|
| Area (L x W) | 320 in² |
| Area (L x W) | 2065 cm˛ |
| Color | Gray |
| Container Type | Junction Box |
| Design | Hinged Door, Lid |
| Features | Sealing Gasket, Wall Mount |
| Height [z] | 5.984 in |
| Height [z] | 152 mm |
| Material | Metal, Steel |
| Ratings | IP65, NEMA 13, UL-508A, NEMA 12 |
| Size / Dimension [x] | 508 mm |
| Size / Dimension [x] | 20 " |
| Size / Dimension [y] | 406 mm |
| Size / Dimension [y] | 15.984 " |
| Thickness | 16 Gauge |
| Weight | 12.2 kg |
| Weight | 27 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 540.55 | |
| 5 | $ 519.75 | |||
Description
General part information
A201606 Series
Junction Box Metal, Steel Gray Hinged Door, Lid 20.000" L x 15.984" W (508.00mm x 406.00mm) X 5.984" (152.00mm)
