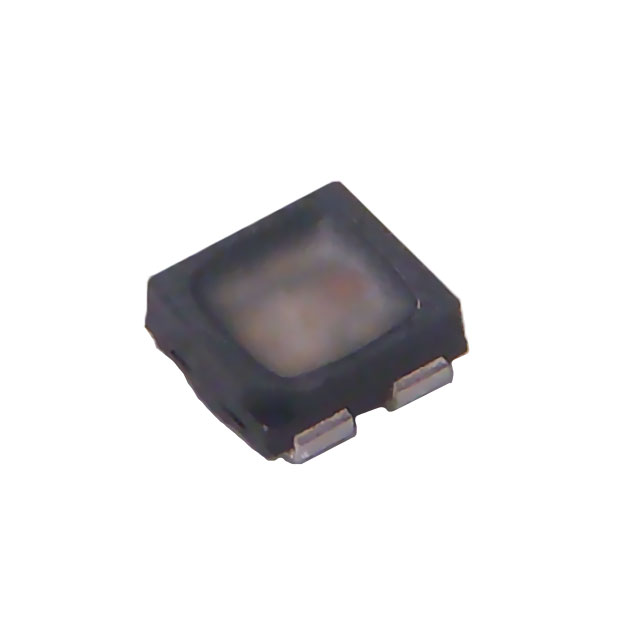

CLMVC-FKA-CA1E1L81BB7C3C3

Active

Cree LED

LED RGB CLEAR 4PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED RGB CLEAR 4PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CLMVC-FKA-CA1E1L81BB7C3C3

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	10 mA
Current - Test [custom]	20 mA
Current - Test [custom]	10 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	365 mcd
Millicandela Rating [custom]	92 mcd
Millicandela Rating [custom]	458 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, J-Lead
Size / Dimension [x]	2 mm
Size / Dimension [y]	2 mm
Supplier Device Package	4-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm

Part	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Configuration	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Height (Max) [Max] [z]	Lens Color	Lens Style	Package / Case	Wavelength - Dominant	Supplier Device Package	Lens Transparency	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating	Lens Size
Cree LED CLMVC-FKA-MF1G1L1BB7D3C3	3 V	3 V	2 V	Common Anode	2 mm	2 mm	Surface Mount	1 mm	Colorless	Square with Flat Top	4-SMD J-Lead	470 nm 530 nm 622 nm	4-PLCC	Clear	10 mA	20 mA	10 mA	Blue Green Red
Cree LED CLMVC-FKA-CA1E1L81BB7C3C3	3 V	3 V	2 V	Common Anode	2 mm	2 mm	Surface Mount	1 mm	Colorless	Square with Flat Top	4-SMD J-Lead	470 nm 530 nm 622 nm	4-PLCC	Clear	10 mA	20 mA	10 mA	Blue Green Red	365 mcd	92 mcd	458 mcd
Cree LED CLMVC-FKA-CLBDGL7LBB79353	3 V	3 V	2 V	Common Anode	2 mm	2 mm	Surface Mount	1 mm	Colorless	Square with Flat Top	4-SMD J-Lead	470 nm 530 nm 622 nm	4-PLCC	Clear	10 mA	20 mA	10 mA	Blue Green Red	337 mcd	98 mcd	420 mcd
Cree LED CLMVC-FKC-CG1J1561BB7D3S3	3.1 V	3.1 V	2.1 V	Common Anode	2 mm	2 mm	Surface Mount	1 mm		Square with Flat Top	4-SMD J-Lead	465 nm 530 nm 622 nm	4-PLCC		10 mA	15 mA	10 mA	Blue Green Red				151.5 mcd 420 mcd 675 mcd	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3V Green, 3V Blue 4-SMD, J-Lead
