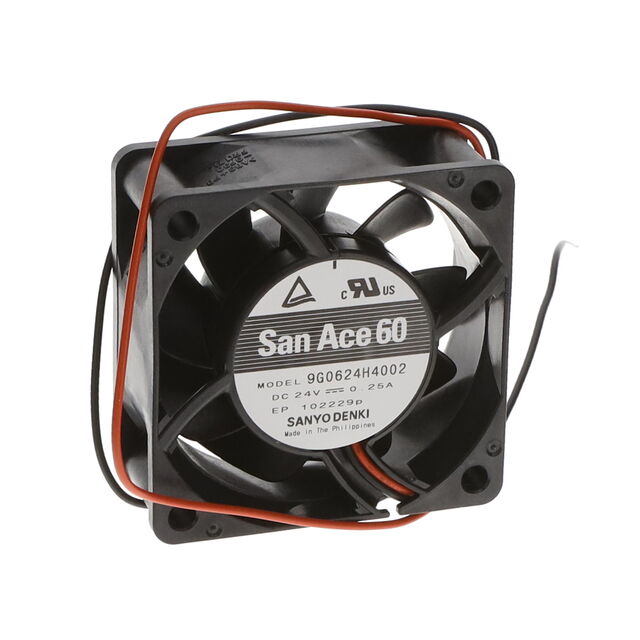

9G0624H4002

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

9G0624H4002

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9G0624H4002

Air Flow	42.7 CFM
Air Flow	1.2 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.25 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	6 W
RPM	9500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.9 in H2O
Static Pressure	224.2 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	90.26 g
Weight	0.199 lb
Width [y]	25 mm

9G0624 Series

Part	Static Pressure	Static Pressure	Width [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	RPM	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [x]	Size / Dimension [y]	Noise	Termination	Approval Agency	Fan Type	Bearing Type	Lifetime @ Temp.	Weight	Weight	Material - Frame	Air Flow	Air Flow	Current Rating (Amps)	Material - Blade
Sanyo Denki America Inc. 9G0624S1D01	1.486 in H2O	370.1 Pa	38 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	16.8 W	Locked Rotor Sensor	10800 RPM	27.6 VDC	14 VDC	60 mm	60 mm	56 dB	3 Wire Leads	CSA TUV UL	Tubeaxial	Ball	40000 Hrs	0.243 lb	110.22 g	Plastic	1.68 mł/min	60 CFM	0.7 A	Plastic
Sanyo Denki America Inc. 9G0624P1G031	1.747 in H2O	435.2 Pa	38 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	20.4 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	11800 RPM	27.6 VDC	14 VDC	60 mm	60 mm	58 dB(A)	4 Wire Leads	CSA TUV UL	Tubeaxial	Ball	40000 Hrs	0.243 lb	110.22 g	Plastic	1.82 mł/min	65 CFM	0.85 A	Plastic
Sanyo Denki America Inc. 9G0624P4S0011	1.2 in H2O	298.9 Pa	25 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	8.16 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	11000 RPM			60 mm	60 mm	53 dB	4 Wire Leads	CSA TUV UL	Tubeaxial	Ball	40000 Hrs	0.199 lb	90.26 g	Plastic	1.38 m³/min	49.4 CFM	0.34 A	Plastic
Sanyo Denki America Inc. 9G0624H4002	0.9 in H2O	224.2 Pa	25 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	6 W		9500 RPM			60 mm	60 mm	49 dB	2 Wire Leads	cURus TUV	Tubeaxial	Ball	40000 Hrs	0.199 lb	90.26 g	Plastic	1.2 m³/min	42.7 CFM	0.25 A	Plastic
Sanyo Denki America Inc. 9G0624S1021	1.486 in H2O	370.1 Pa	38 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	16.8 W		10800 RPM	27.6 VDC	14 VDC	60 mm	60 mm	56 dB	2 Wire Leads	CSA TUV UL	Tubeaxial	Ball	40000 Hrs	0.243 lb	110.22 g	Plastic	1.68 mł/min	60 CFM	0.7 A	Plastic
Sanyo Denki America Inc. 9G0624P4H0011	0.9 in H2O	224.2 Pa	25 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	6 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	9500 RPM			60 mm	60 mm	49 dB	4 Wire Leads	cURus TUV	Tubeaxial	Ball	40000 Hrs	0.199 lb	90.26 g	Plastic	1.2 m³/min	42.7 CFM	0.25 A	Plastic
Sanyo Denki America Inc. 9G0624H40021	0.9 in H2O	224.2 Pa	25 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	6 W		9500 RPM			60 mm	60 mm	49 dB	2 Wire Leads	cURus TUV	Tubeaxial	Ball	40000 Hrs	0.199 lb	90.26 g	Plastic	1.2 m³/min	42.7 CFM	0.25 A	Plastic
Sanyo Denki America Inc. 9G0624H4001	0.9 in H2O	224.2 Pa	25 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	6 W	Locked Rotor Protection Speed Sensor (Tach)	9500 RPM			60 mm	60 mm	49 dB	3 Wire Leads	cURus TUV	Tubeaxial	Ball	40000 Hrs	0.199 lb	90.26 g	Plastic	1.2 m³/min	42.7 CFM	0.25 A	Plastic
Sanyo Denki America Inc. 9G0624S4D001	1.2 in H2O	298.9 Pa	25 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	8.16 W	Locked Rotor Sensor	11000 RPM			60 mm	60 mm	53 dB	3 Wire Leads	CSA TUV UL	Tubeaxial	Ball	40000 Hrs	0.199 lb	90.26 g	Plastic	1.38 m³/min	49.4 CFM	0.34 A	Plastic
Sanyo Denki America Inc. 9G0624H102	1.223 in H2O	304.6 Pa	38 mm	24 VDC	-20 °C	70 °C	-20 C	70 °C	13.68 W		9800 RPM	27.6 VDC	14 VDC	60 mm	60 mm	54 dB	2 Wire Leads	CSA TUV UL	Tubeaxial	Ball	40000 Hrs	0.243 lb	110.22 g	Plastic	1.52 m³/min	54.4 CFM		Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 26.57
		10	$ 24.27
		25	$ 23.35
		80	$ 21.81
		160	$ 20.12
		320	$ 19.81

Description

General part information

9G0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 42.7 CFM (1.20m³/min) 2 Wire Leads
