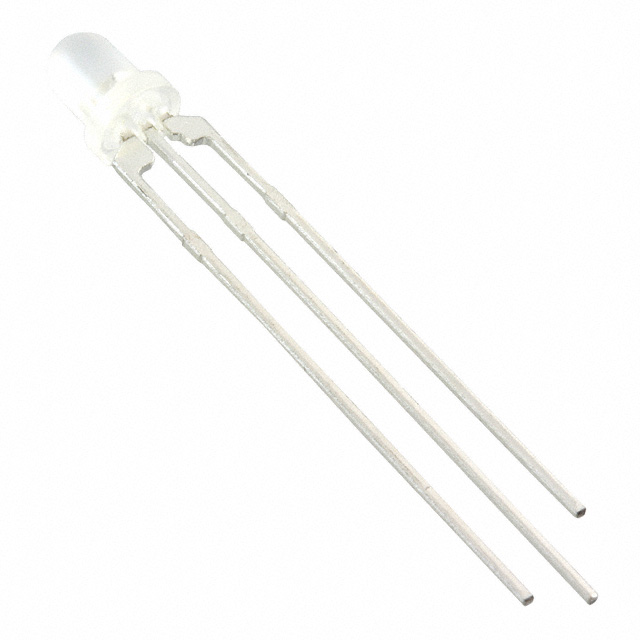

WP115VEYW

Active

Kingbright

LED RED/YLW DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Kingbright

LED RED/YLW DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Lens Color	Color	Configuration	Mounting Type	Viewing Angle	Current - Test	Wavelength - Peak	Height (Max) [Max]	Size / Dimension [diameter]	Supplier Device Package	Lens Size	Lens Size	Wavelength - Dominant [custom]	Package / Case	Lens Transparency	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Millicandela Rating [custom]	Wavelength - Dominant	Wavelength - Peak [custom]	Lens Type	Voltage Rating	Current	Millicandela Rating
Kingbright WP115VEYW	Round with Domed Top	White	Red Yellow	Common Cathode	Through Hole	60 °	20mA Red 20mA Yellow	590 nm 627 nm	7.83 mm	3 mm	T-1	3 mm	T-1	588 nm 617 nm	Radial - 3 Leads	Diffused	2 V 2.1 V
Kingbright WP115WEYW	Round with Domed Top	White	Red Yellow	Common Cathode	Through Hole	60 °	20mA Red 20mA Yellow	590 nm 627 nm	7.83 mm	3 mm	T-1	3 mm	T-1	588 nm 617 nm	Radial - 3 Leads	Diffused	2 V 2.1 V	20 mcd	20 mcd
Kingbright WP115VEGW	Round with Domed Top	White	Green Red	Common Cathode	Through Hole	60 °		565 nm 627 nm	7.83 mm	3 mm	T-1	3 mm	T-1		Radial - 3 Leads	Diffused	2 V 2.2 V	20 mcd		20 mA 20 mA	30 mcd	568 nm 617 nm
Kingbright WP115WUM/EGW	Round with Domed Top		Green Red	Single	Through Hole Right Angle	60 °						3 mm	T-1										565 nm 627 nm	Diffused	2 V 2.2 V	25 mA 30 mA	40 mcd 40 mcd
Kingbright WP115WGYW	Round with Domed Top	White	Green Yellow	Common Cathode	Through Hole	60 °		565 nm 590 nm	7.83 mm	3 mm	T-1	3 mm	T-1		Radial - 3 Leads	Diffused	2.1 V 2.2 V			20 mA 20 mA		568 nm 588 nm					20 mcd 40 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Yellow 617nm Red, 588nm Yellow LED Indication - Discrete 2V Red, 2.1V Yellow Radial - 3 Leads
