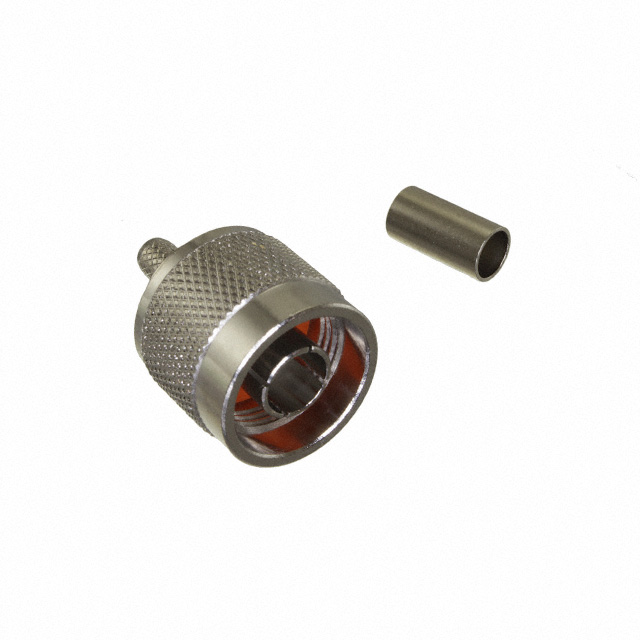

RF5-01-T-01-50 - RF5-01-T-01-50

RF5-01-T-01-50

Active
Adam Tech

N PLUG CRIMP STRAIGHT FOR RG58/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry BrochureECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1
RF5-01-T-01-50 - RF5-01-T-01-50

RF5-01-T-01-50

Active
Adam Tech

N PLUG CRIMP STRAIGHT FOR RG58/R

Deep-Dive with AI

DocumentsMedical Industry BrochureECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1

Technical Specifications

Parameters and characteristics for this part

SpecificationRF5-01-T-01-50
Body FinishNickel
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleN Type
Connector TypeMale Pin, Plug
Contact TerminationCrimp
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypePush-Pull
Frequency - Max [Max]4 GHz
Impedance50 Ohms
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Shield TerminationCrimp
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 9.54
10$ 7.32
25$ 6.61
50$ 6.13
100$ 5.69
250$ 5.18
500$ 4.83
1000$ 4.51

Description

General part information

RF5-01 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
