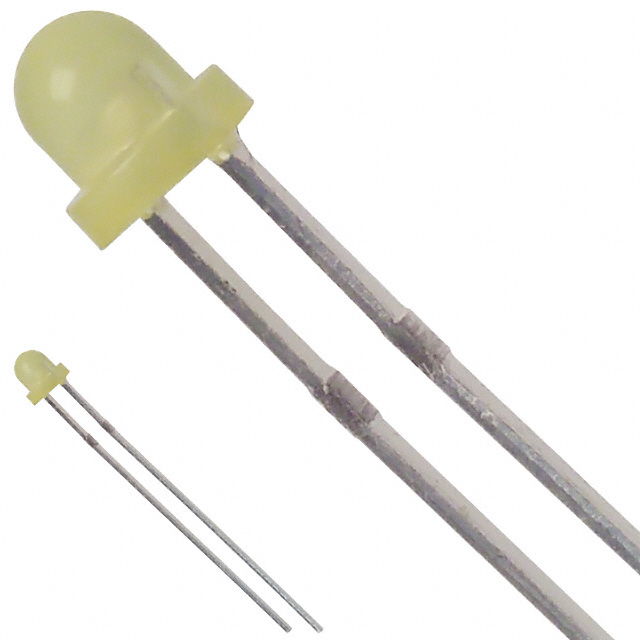

SSL-LX3034YD

Active

Lumex Opto/Components Inc.

LED YELLOW DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED YELLOW DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Peak	Mounting Type	Lens Transparency	Lens Size	Lens Size	Configuration	Millicandela Rating	Current - Test	Viewing Angle	Supplier Device Package	Lens Style	Height (Max) [Max] [z]	Lens Color	Package / Case	Voltage - Forward (Vf) (Typ)	Color
Lumex Opto/Components Inc. SSL-LX3034YD	585 nm	Through Hole	Diffused	3 mm	T-1	Standard	10 mcd	20 mA	60 °	T-1	Round with Domed Top	3.8 mm	Yellow	Radial	2.1 V	Yellow
Lumex Opto/Components Inc. SSL-LX3034ID	635 nm	Through Hole	Diffused	3 mm	T-1	Standard	10 mcd	20 mA	60 °	T-1	Round with Domed Top	3.8 mm	Red	Radial	2 V	Red
Lumex Opto/Components Inc. SSL-LX3034GD	565 nm	Through Hole	Diffused	3 mm	T-1	Standard	10 mcd	20 mA	60 °	T-1	Round with Domed Top	3.8 mm	Green	Radial	2.2 V	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.08

General part information

Yellow LED Indication - Discrete 2.1V Radial

Technical documentation and resources

No documents available
