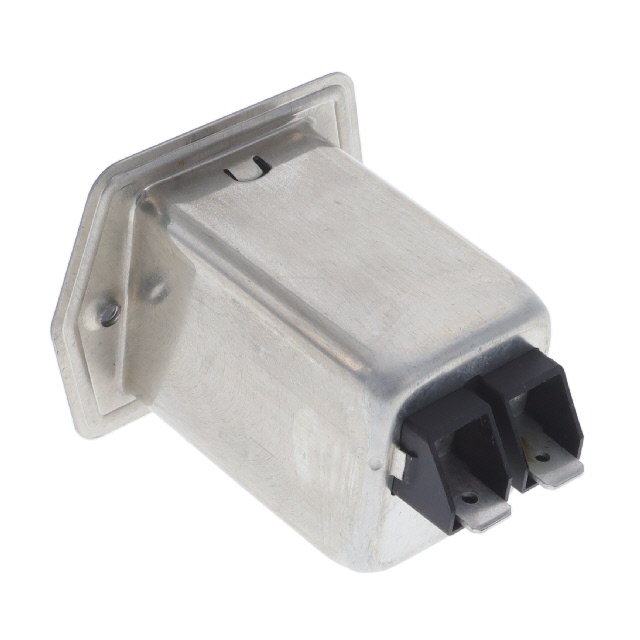

5707.0203.413
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C18 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
5707.0203.413
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C18 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5707.0203.413 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | ENEC, cULus |
| Connector Style | IEC 320-C18 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 2 A |
| Current Rating - Filter | 2 A |
| Features | Shielded |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Fuse Holder, Drawer | Fuse Holder |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 2 |
| Panel Cutout Dimensions [x] | 36 mm |
| Panel Cutout Dimensions [y] | 33.5 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.31 | |
| 50 | $ 29.18 | |||
Description
General part information
5707.0203 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Flange
