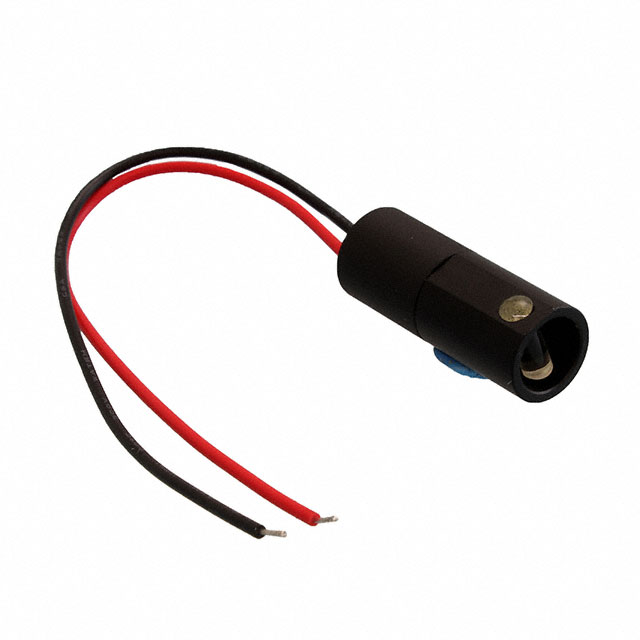

VLM-650-41 LPT30(90O)

Active

Quarton Inc.

LASER DIODE 650NM 20MW 10MM DIA

Search across all available documentation for this part.

Active

Quarton Inc.

LASER DIODE 650NM 20MW 10MM DIA

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Power (Watts)	Wavelength	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case [diameter]	Package / Case	Voltage - Input
Quarton Inc. VLM-650-28 LPT	35 mA	1 mW	655 nm	5 V	3 V
Quarton Inc. VLM-650-30 LPT10 (90O)		5 mW	650 nm			10 mm	Cylinder	5 VDC
Quarton Inc. VLM-650-01-LPAC	40 mA	3 mW	650 nm	5 V	2.6 V
Quarton Inc. VLM-650-41 LPT(90O)			650 nm			10 mm	Cylinder	5 VDC
Quarton Inc. VLM-650-03 LPT	40 mA	1 mW	650 nm	5 V	2.6 V	7 mm	Cylinder
Quarton Inc. VLM-650-12 LPT	40 mA		650 nm			10.5 mm	Cylinder	4 V
Quarton Inc. VLM-650-06 LPA	40 mA	3 mW	650 nm	6 V	2.7 V	12.5 mm	Cylinder
Quarton Inc. VLM-650-27-LPA	40 mA	3 mW	650 nm	5 V	2.6 V	12.5 mm	Cylinder
Quarton Inc. VLM-650-01-SPA	40 mA	3 mW	650 nm	5 V	2.6 V
Quarton Inc. VLM-650-41 LPT30(90O)		0.02 W	650 nm			10 mm	Cylinder	5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Laser Diode 650nm 20mW 5V Cylinder (10mm Dia)
