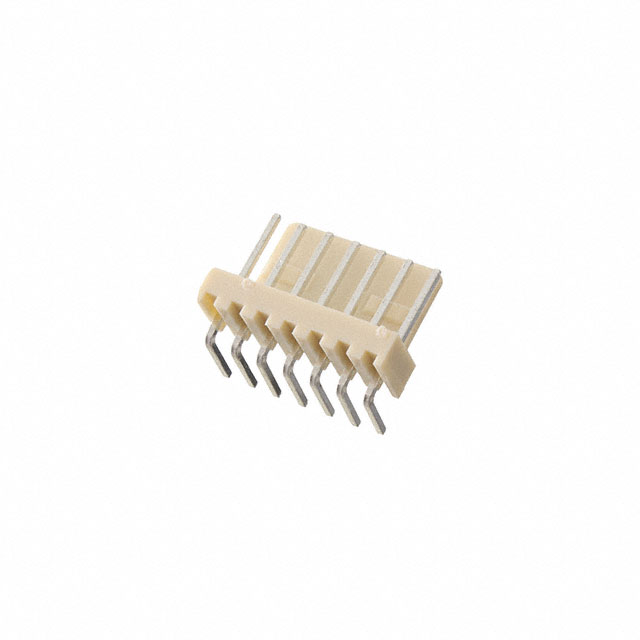

LHA-07-TRB
ActiveAdam Tech
CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
LHA-07-TRB
ActiveAdam Tech
CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LHA-07-TRB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 7.45 mm |
| Contact Length - Mating | 0.293 in |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | White |
| Insulation Height | 5.8 mm |
| Insulation Height | 0.228 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VAC |
LHA-07 Series
| Part | Shrouding | Style | Contact Material | Overall Contact Length | Overall Contact Length | Contact Shape | Insulation Color | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Number of Positions | Contact Finish - Post | Fastening Type | Contact Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Current Rating (Amps) | Connector Type | Number of Rows | Number of Positions Loaded | Termination | Mounting Type | Material Flammability Rating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Shrouded - 1 Wall | Board to Cable/Wire | Brass | 14.2 mm | 0.559 in | Square | Ivory | 0.134 in | 3.4 mm | 0.134 in | 3.4 mm | 0.291 in | 7.4 mm | 7 | Tin | Friction Lock | Male Pin | 0.1 in | 2.54 mm | -25 °C | 85 °C | 250 VAC | 3 A | Header | 1 | All | Solder | Through Hole | UL94 V-2 | Nylon Polyamide (PA) |
Adam Tech | Shrouded - 1 Wall | Board to Cable/Wire | Brass | Square | White | 0.134 in | 3.4 mm | 0.228 in | 5.8 mm | 0.293 in | 7.45 mm | 7 | Tin | Friction Lock | Male Pin | 0.1 in | 2.54 mm | -25 °C | 85 °C | 250 VAC | 3 A | Header | 1 | All | Solder | Through Hole Right Angle | UL94 V-2 | Polyamide (PA66) Nylon 6/6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.32 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
Description
General part information
LHA-07 Series
Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)
