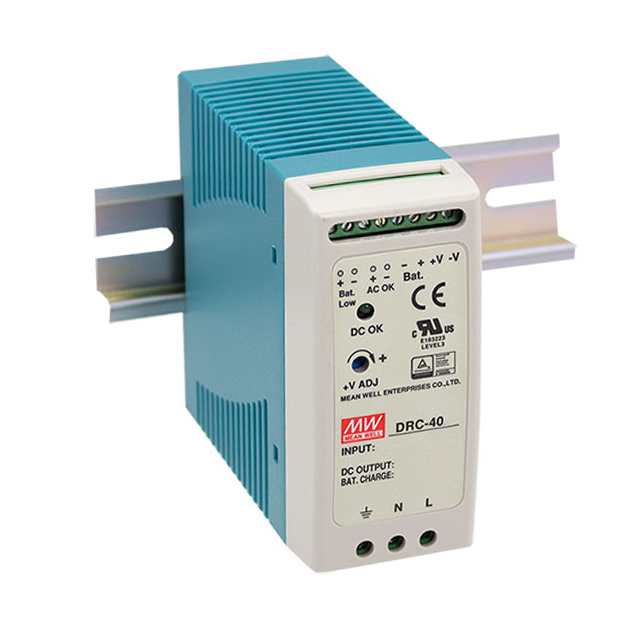

DRC-40B

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUP 2X27.6V 40W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUP 2X27.6V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	DRC-40B

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output (Max)	950 mA
Current - Output (Max)	500 mA
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	127 V
Efficiency	87 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	40 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	27.6 V
Voltage - Output 2	27.6 V

Part	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Input Type	Efficiency	DC Voltage - Input (Max) [Max]	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 2	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	DC Voltage - Input (Min) [Min]	Applications
MEAN WELL USA Inc. DRC-40B	40 W	27.6 V	3000 V	950 mA	500 mA	AC or DC	87 %	370 V	2	Adjustable Output Universal Input	70 °C	-30 °C	90 VAC	264 VAC	27.6 V	CB CE cURus TUV	90 mm	100 mm	3.94 in	1.57 "	40 mm	3.54 "	127 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUP 2X27.6V 40W
