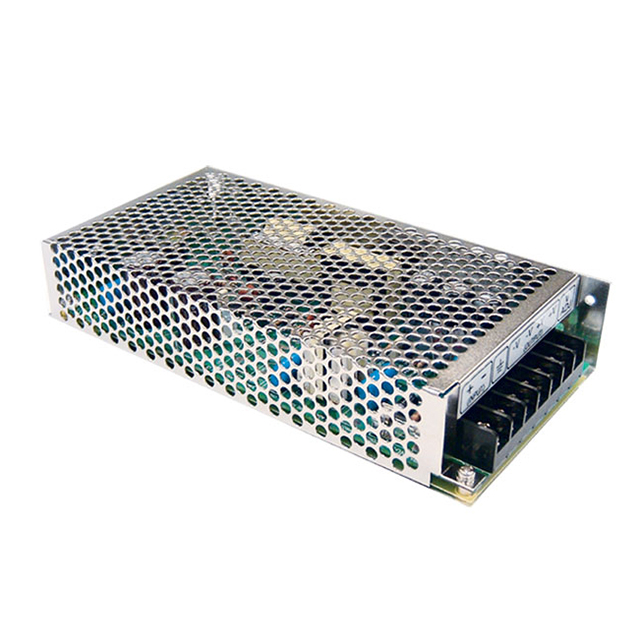

SD-100B-24
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 24V 101W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SD-100B-24
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER 24V 101W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-100B-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 4.2 A |
| Efficiency | 78 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 101 W |
| Size / Dimension [x] | 199 mm |
| Size / Dimension [x] | 7.83 in |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 19 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 42.67 | |
| 5 | $ 40.23 | |||
| 10 | $ 39.22 | |||
| 25 | $ 37.92 | |||
Description
General part information
SD-100B Series
Enclosed DC DC Converter 1 Output 24V 4.2A 36V Input
