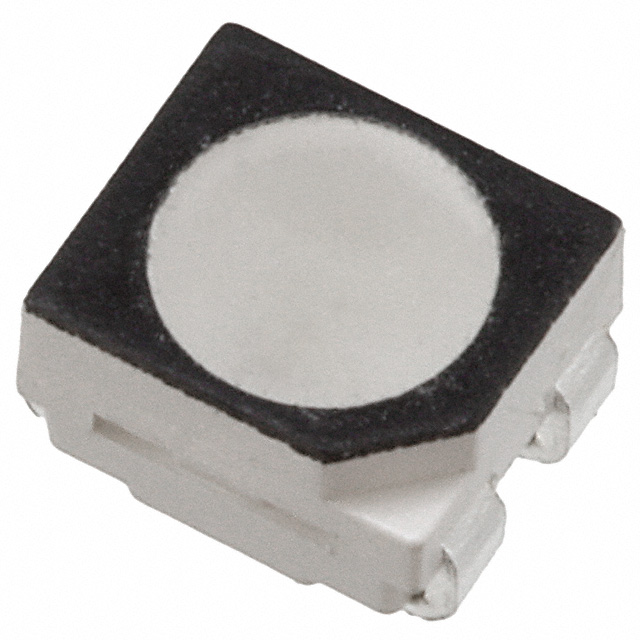

CLV1A-FKB-CHMKPEHBB7A363

Unknown

Cree LED

LED RGB 4PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLV1A-FKB-CHMKPEHBB7A363

Unknown

Cree LED

LED RGB 4PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLV1A-FKB-CHMKPEHBB7A363

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	2.1 mm
Millicandela Rating [custom]	627.5 mcd
Millicandela Rating [custom]	315 mcd
Millicandela Rating [custom]	980 mcd
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Wavelength - Dominant	530 nm, 621.5 nm, 470 nm

CLV1A Series

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Mounting Type	Configuration	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Wavelength - Dominant	Viewing Angle	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Cree LED CLV1A-FKB-CKMQRNRFHBB79353	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	1570 mcd	758 mcd	337 mcd	4-PLCC
Cree LED CLV1A-FKB-CH1K1E1BB7D3C3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	840 mcd	533 mcd	268 mcd	4-PLCC	468 nm 530 nm 622 nm
Cree LED CLV1A-FKB-CHMKPEJBB7A363	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	980 mcd	627.5 mcd	342.5 mcd	4-PLCC	470 nm 530 nm 621.5 nm	120 °	470 nm	630 nm	527 nm
Cree LED CLV1A-FKB-CJ1M1F1BB7R3S3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	1055 mcd	675 mcd	337 mcd	4-PLCC	470 nm 530 nm 621.5 nm	120 °	470 nm	630 nm	527 nm
Cree LED CLV1A-FKB-CH1K1E1BB7D4C3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	840 mcd	533 mcd	268 mcd	4-PLCC	473 nm 530 nm 622 nm
Cree LED CLV1A-FKB-CHMKPEHBB7A363	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	980 mcd	627.5 mcd	315 mcd	4-PLCC	470 nm 530 nm 621.5 nm
Cree LED CLV1A-FKB-CKM1P1F1BB7C3C3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	1260 mcd	758 mcd	252 mcd	4-PLCC
Cree LED CLV1A-FKB-CK1N1G1BB7R4S3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	1150 mcd	730 mcd	392.5 mcd	4-PLCC	470 nm 530 nm 621.5 nm	120 °	470 nm	630 nm	527 nm
Cree LED CLV1A-FKB-CJ1M1F1BB7R4S3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	1055 mcd	675 mcd	337 mcd	4-PLCC	470 nm 530 nm 621.5 nm	120 °	470 nm	630 nm	527 nm
Cree LED CLV1A-FKB-CH1K1E1BB7R3S3	4-PLCC	3.2 V	2 V	3.2 V	Surface Mount	Common Anode	20 mA	20 mA	20 mA	2.1 mm	2.8 mm	3.2 mm	Blue Green Red	840 mcd	532.5 mcd	267.5 mcd	4-PLCC	470 nm 530 nm 621.5 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLV1A Series

Red, Green, Blue (RGB) 621.5nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue 4-PLCC

Documents

Technical documentation and resources
