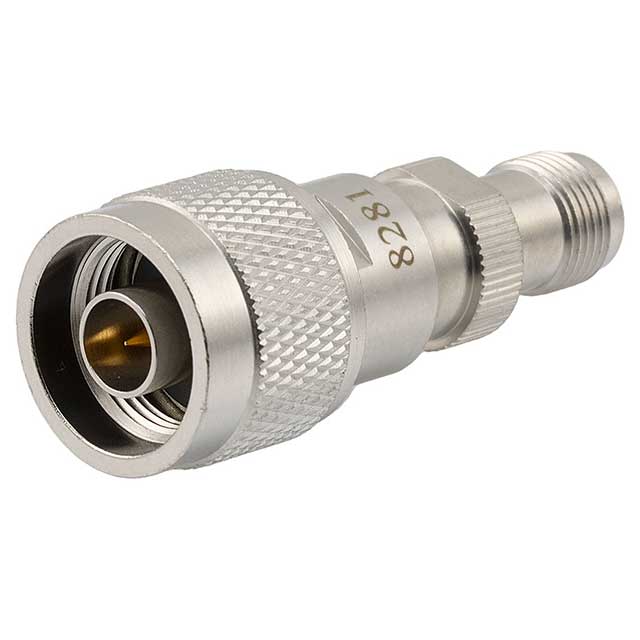

PE8281

Active

Pasternack

DC BLOCK: N-TNC 0.01-3GHZ

Search across all available documentation for this part.

Active

Pasternack

DC BLOCK: N-TNC 0.01-3GHZ

Technical Specifications

Parameters and characteristics for this part

Part	Style	Frequency - Max [Max]	Center Contact Material	Center Contact Plating	Adapter Type	Fastening Type	Mounting Type	Body Finish	Convert To (Adapter End)	Body Material	Conversion Type	Impedance	Insertion Loss	Convert From (Adapter End)	Adapter Series
Pasternack PE8280	Straight	3 GHz	Brass Bronze	Gold	Plug to Jack	Bayonet Lock Threaded	Free Hanging (In-Line)	Tri-Metal	Male Pin N Plug	Brass	Between Series	50 Ohms	0.2 dB	BNC Jack Female Socket	BNC to N
Pasternack PE8281	Straight	3 GHz	Brass Bronze	Gold	Plug to Jack		Free Hanging (In-Line)	Tri-Metal	Female Socket TNC Jack	Brass	Between Series	50 Ohms	0.2 dB	N Plug Male Pin	N to TNC
Pasternack PE8282	Straight	3 GHz	Bronze	Gold	Plug to Jack	Bayonet Lock Threaded	Free Hanging (In-Line)	Tri-Metal	Female Socket TNC Jack	Brass	Between Series	50 Ohms	0.2 dB	BNC Plug Male Pin	BNC to TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
